COLDMASTER

Arc Welding

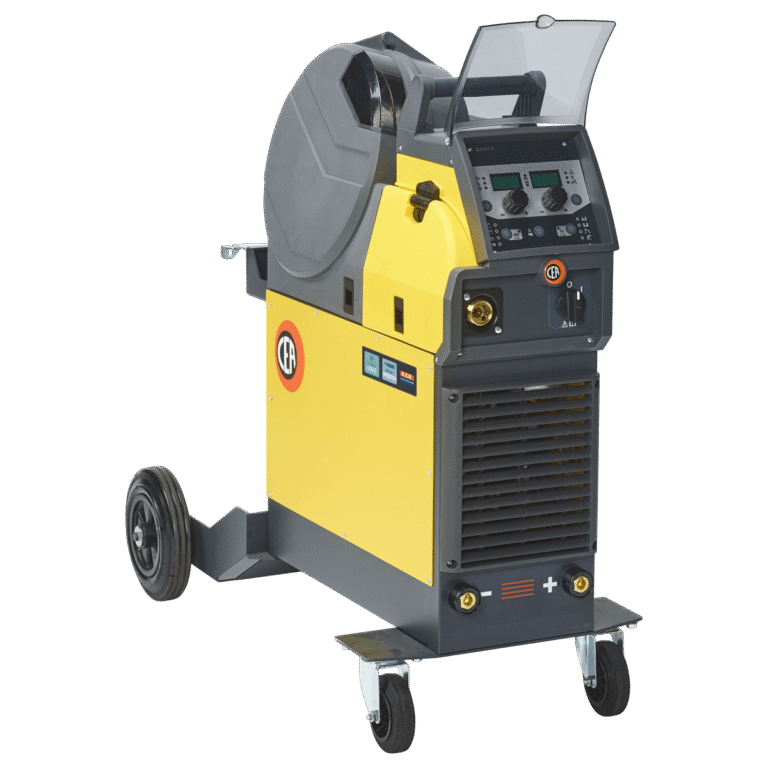

COLDMASTER

THE MASTER CHOICE TO WELD LIGHT STEEL STRUCTURES
MIG-MAG INVERTER COMPACT EQUIPMENT
COLDMASTER is a new multiprocess synergic power source for welding in MIG/MAG, MMA and TIG with Lift mode characterized by an impressive arc stability on low thermal input application. COLDMASTER combines ergonomics and a stunning arc stability in each position.
Contact Us
MIG/MAG | MMA | TIG LIFT
New ergonomic level
COLDMASTER combine ergonomics and ease of use with an incredible welding quality with a precise and stable arc in all situations, which makes them perfect for all qualified welding applications, especially in metal sheet working, car body repair sector, agriculture and maintenance.
Excellent welding quality
COLDMASTER due to its additional special processes vision.COLD and vision.SPEEDCOLD grants stunning performance on small thickness welding in any position.

Other Characteristics

  • Digital control with synergic curves
  • Easy-to-use selection and recalling of the parameters and welding programs
  • Interface panel duly protected by a cover
  • Fast access to 16 preset welding Job Programs
  • Wire spool holder in ergonomic position
  • Lodging for wire spools up to Ø 300 mm
  • Professional double groove feeding mechanism with 4 rolls of large diameter
  • Energy saving function

COLDMASTER: Technical Features

TECHNICAL DATA COLDMASTER 301
MIG/MAG TIG MMA
Three phase 50/60 Hz V +15% -15% 400
Input Power @ I2 Max kVA 13,3 11,6 11,9
Delayed Fuse (l eff) A 16
Current range A 10-300 5-300 10-250
Duty cycle at (40°C) A 100% 180
A 60% 200
A X% 300(30%)
Wires Ø mm 0,6-1,2
Standards EN 60974-1 • EN 60974-5 • EN 60974-10
Protection Class IP 23S
Dimensions (LxWxH) mm 960 x 420 x 885
Weight kg 40
