SK 75

Plasma Welding

SK 75

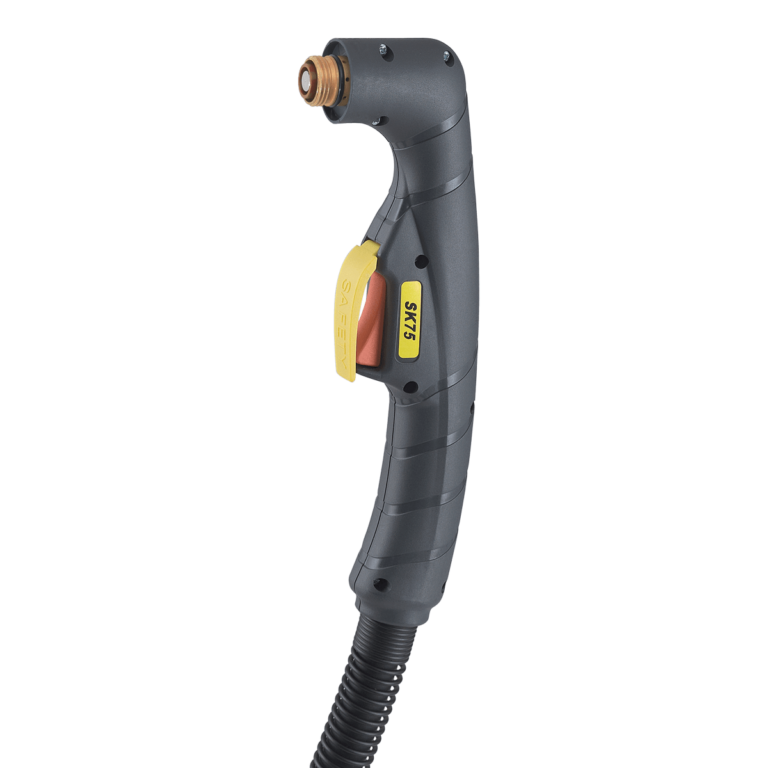

MANUAL HIGH QUALITY TORCH
Manual torch 70 A
SK75 torches for manual cutting are characterized by High Performance Cutting HPC technology which permits an increase in air quantity and speed, to better concentrate the plasma cutting beam and to stabilize the cutting arc.
Contact Us
Plasma Cutting

Other Characteristics

  • high cutting speed
  • optimal quality and cleanliness of the cut surfaces
  • high concentration of the plasma cutting beam
  • lack of dross
  • reduction in the heat affected zone
  • longer life of the consumables
  • piercing on lamination achieved in shorter times
  • All SK torches are fitted with a coaxial cable which combines great flexibility to robustness and resistance to crushing.

SK 75: Technical Features

POS. CODE DESCRIPTION BLISTER QTY.
1 422674 Torch body 1
2 433605 O-ring 20
3 425022 Electrode 5
4 482134 Swirl ring 2
5 408609 Nozzle 50 A 10
6 408610 Nozzle 70 A 10
7 486049 External nozzle 1
8 487630 Shield cap (manual cut) 2
9 425059 Extended electrode 5
10 408623 Extended nozzle 50 A 5
11 408624 Extended nozzle 70 A 5
12 424490 Extended Shield cap (manual cut) 2
13 487642 Shield cap (gouging) 2
