C-GUN

Resistance Welding

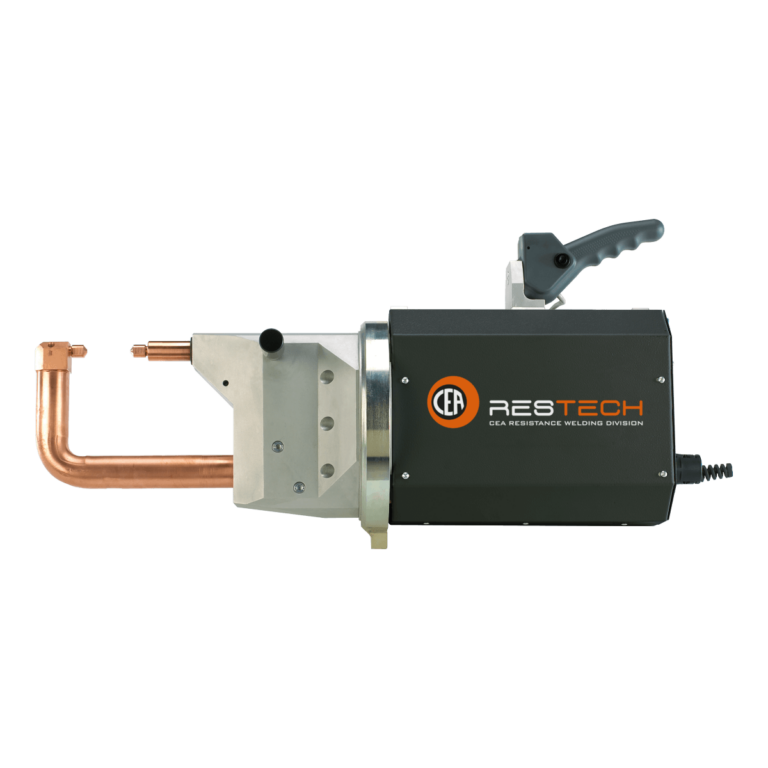

C-GUN

SUSPENDED SPOT WELDING GUNS
AIR OPERATED WITH SAFE SEPARATE CONTROL CABINET
C-GUN pneumatic operated suspended gun with a wide selection of arms, user friendly detached control cabinet and reduced weight to ensure high productivity in the toughest industrial applications. Gyroscope suspension on sealed bearings for easy gun rotation and manoeuvrability in any position.
Contact Us
Resistance Spot Welding

Other Characteristics

  • Welding control in a separate cabinet with circuit breaker and emergency button
  • Synchronous ignition SCR group
  • Reduced consumption
  • Water cooled transformer, arms, electrode holders and electrodes
  • Gyroscope suspension on sealed bearings
  • Adjustable working stroke
  • Temporary extra stroke to reach workpiece areas over obstacles
  • High versatility in all applications
  • Self-lubricated pneumatic components

C-GUN: Technical Features

TECHNICAL DATA C-GUN 28
Single phase input 50/60 Hz V 400
Rated power at 50% kVA 28
Max. welding power kVA 98
Installed power kVA 25
Fuse (delayed action) A 40
Secondary short circuit current kA 21
Max. welding current kA 16,8
Work stroke mm 50+20
Electrode force at 600kPa daN 300
Water consumption at 300kPa l/min 4
Dimensions (without arms) (LxWxH) mm 800x250x425
Weight (without arms) kg 58
