DIGITECH VP4

Arc Welding

DIGITECH VP4

THE WELDING EDGE
SYNERGIC MULTIPROCESS INVERTER PULSED POWER SOURCES WITH SEPARATED WIRE FEEDER

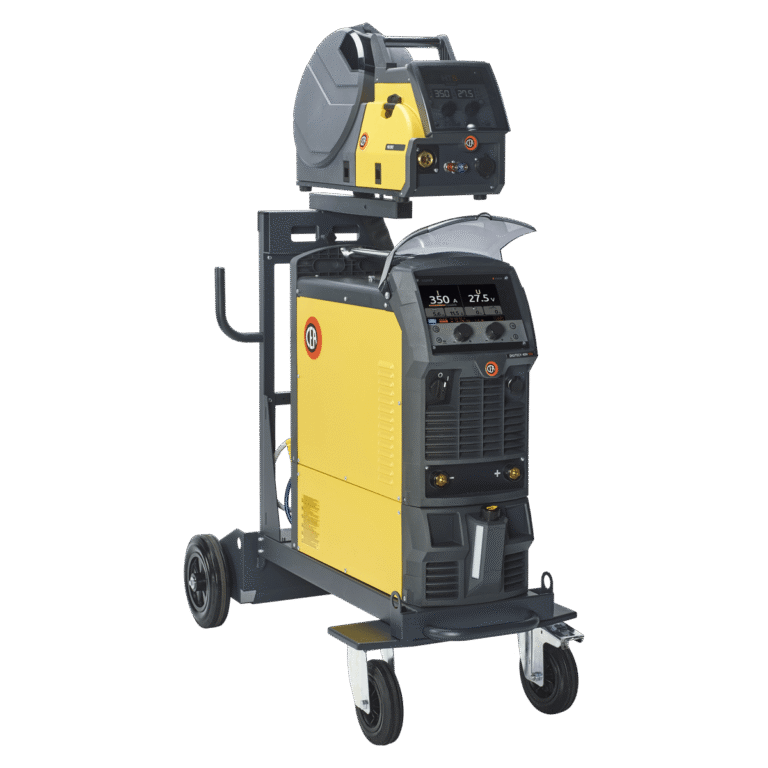

DIGITECH VP4 (Vision Pulse 4) are the most advanced and top performing multi-process pulse welding equipment of CEA. Developed with the latest CEA arc control software, DIGITECH VP4 obtain incredible quality results with any material in all welding applications.
Contact Us
MIG/MAG | PULSED MIG | DUAL PULSED | MMA | TIG LIFT
Top welding performance
Technologically ahead and easy-to-use, they offer premium welding quality at high speed in PULSED MIG, DUAL PULSED, MIG-MAG, MMA and TIG with lift arc striking. DIGITECH are characterized by a digital interface with 7″ colour display and a synergic control to automatically determine the best welding parameters, based on the used type of material, the wire diameter and the gas.
Top Wire Feeding
DOUBLE GEAR wire feeding system || ERGONOMIC UNLOCKING of the roller fastening system || EASY ROLLS SUBSTITUTION without any tools || TWINS ROLLS for welding all wires || COLOR CODED for instant wire thickness recognition

Other Characteristics

  • DOUBLE GEAR wire feeding system
  • ERGONOMIC UNLOCKING of the roller fastening system
  • EASY ROLLS SUBSTITUTION without any tools
  • TWINS ROLLS for welding all wires
  • COLOR CODED for instant wire thickness recognition
  • User Interface with LCD colour display
  • Monitoring and repeatability of the welding parameters
  • Ability to partially or totally lock the equipment with access key by password
  • Energy Saving
  • Up/Down MIG torch
  • LAN connectivity via Ethernet or WIFI (Optional)
  • Data storing and data printing (Optional)

DIGITECH VP4: Technical Features

TECHNICAL DATA DIGITECH VP4
4004 5004
Three Phase input 50/60 Hz V 10% / -10% 400
Input Power @ I2 Max kVA 22,1 27,6
Delayed Fuse (l eff) A 32 40
Power Factor / cos φ 0,70/0,99 0,79/0,99
Efficiency Degree 0,88 0,89
Open circuit voltage V 62 62
Current range A 10-400 10-500
Duty cycle at (40°C) A 100% 350 400
A 60% 400 460
A X% – 500(50%)
Wires Ø mm 0,6-1,6 0,6-1,6
Standards EN 60974-1 – EN 60974-10
Protection Class IP 23S
Dimensions (L x W x H) mm 725x310x525 725x310x525
Weight kg 45 47
