SK 165 XL

Plasma Welding

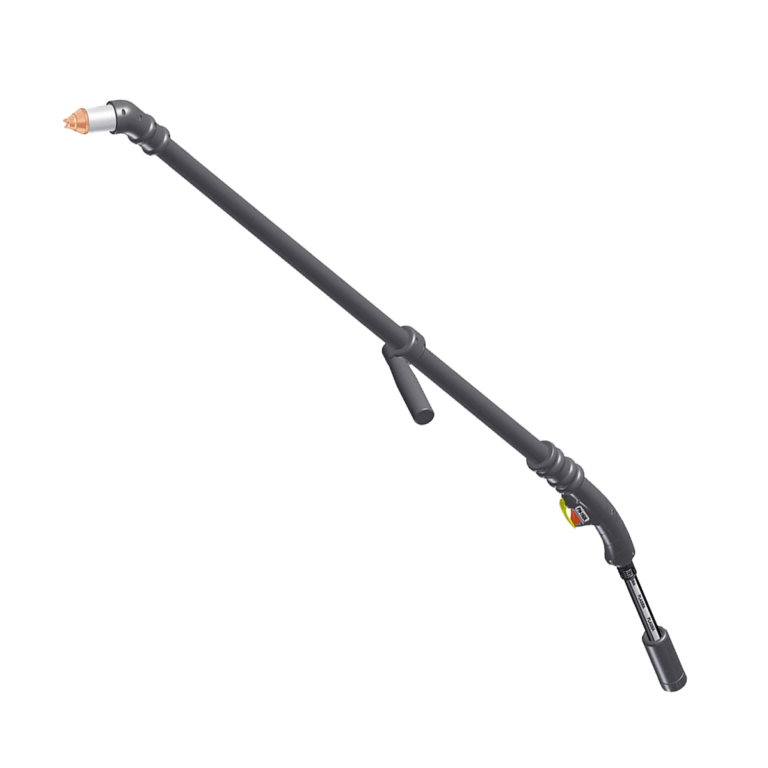

SK 165 XL

MANUAL HIGH QUALITY TORCH
Manual torch 160 A
SK165 XL torches for manual cutting are characterized by High Performance Cutting HPC technology which permits an increase in air quantity and speed, to better concentrate the plasma cutting beam and to stabilize the cutting arc. This specific product is designed to protect the operator even in the hardest condition.
Contact Us
Plasma Cutting

Other Characteristics

  • high cutting speed
  • optimal quality and cleanliness of the cut surfaces
  • high concentration of the plasma cutting beam
  • lack of dross
  • reduction in the heat affected zone
  • longer life of the consumables
  • piercing on lamination achieved in shorter times
  • All SK torches are fitted with a coaxial cable which combines great flexibility to robustness and resistance to crushing.

SK 165 XL: Technical Features

POS. CODE DESCRIPTION BLISTER QTY.
1 422681 Torch body 45° 1
2 422683 Torch body 90° 1
3 433609 O-ring 20
4 425024 Electrode 5
5 482137 Swirl ring 2
6 408640 Nozzle 45 A 10
7 408645 Nozzle 160 A 10
8 486021 External nozzle 45-85 A 1
9 486022 External nozzle 105-160 A 1
10 487633 Shield cap 45-85 A (manual cut) 2
11 487634 Shield cap 105-160 A (manual cut) 2
12 487641 Shield cap (gouging) 2
