Arc Welding

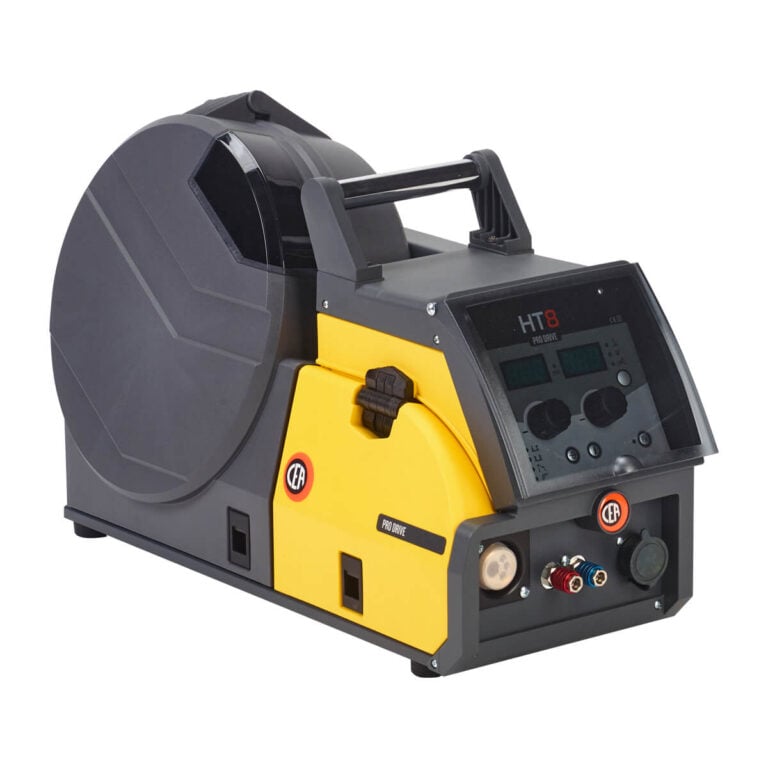

HT8 PRO DRIVE

THE MOST ADVANCED MIG WIRE FEEDER
DESIGNED FOR PROFESSIONAL APPLICATIONS
HT8 PRO DRIVE is the most advanced wire feeder of CEA. In combination with the DIGITECH power source it creates the perfect mix of performance, quality and reliability to perform every weld at the maximum level.
PRO DRIVE feeder
HT8 PRO DRIVE proposes main selection and control keys of wire-feeder and power source. The available 2 independent displays, feeder plus power source, provide the possibility of contemporarily visualizing and monitoring 4 different parameters at the same time. This wire feeder have to be plug only to all DIGITECH series.

Other Characteristics

  • Digital control of all parameters protected by a cover
  • Professional wire feeding mechanism with 4 rolls of large diameter
  • Graduated knob for correct wire pressure
  • Double groove rolls replaceable without any tool
  • Lodging for wire spools up to 300 mm diameter
  • Led light in the feeder compartment
  • Inspection window in the spool cover
  • HK1 Hanging Kit (optional)

HT8 PRO DRIVE: Technical Features

TECHNICAL DATA HT8 PRO DRIVE
Single phase input 50/60 Hz V 24 DC
Motor power W 100
Rolls No. 4
Feeding speed m/min 0,6/25
Solid wire (steel) Ø mm 0,6/1,6
Spool Ø mm / Weight 300 / 20 MAX
Dimensions (LxWxH) mm 635 x 270 x 415
Weight kg 15
