SK 125

Plasma Welding

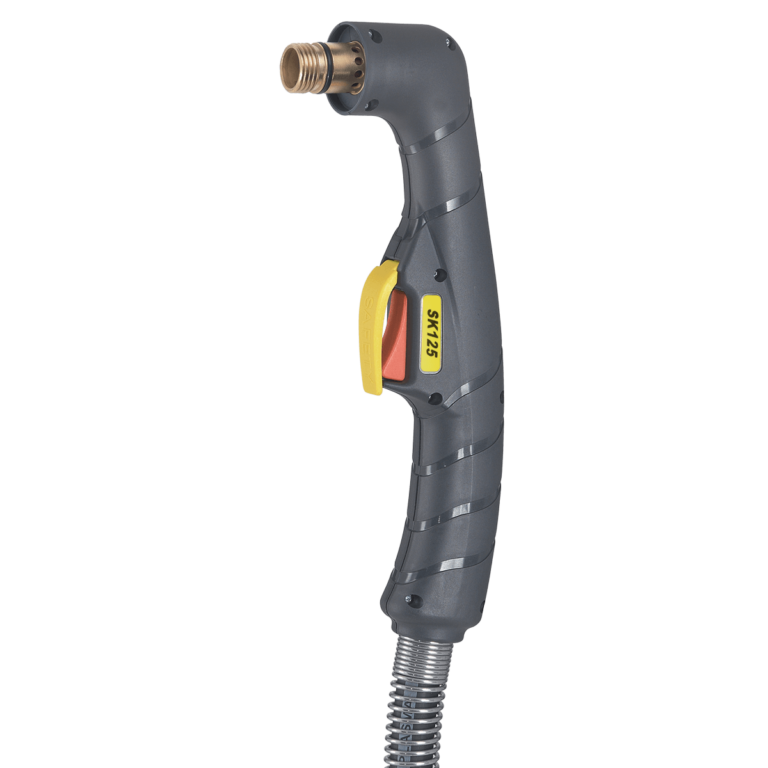

SK 125

MANUAL HIGH QUALITY TORCH
Manual torch 120 A
SK125 torches for manual cutting are characterized by High Performance Cutting HPC technology which permits an increase in air quantity and speed, to better concentrate the plasma cutting beam and to stabilize the cutting arc.
Contact Us
Plasma Cutting

Other Characteristics

  • high cutting speed
  • optimal quality and cleanliness of the cut surfaces
  • high concentration of the plasma cutting beam
  • lack of dross
  • reduction in the heat affected zone
  • longer life of the consumables
  • piercing on lamination achieved in shorter times
  • All SK torches are fitted with a coaxial cable which combines great flexibility to robustness and resistance to crushing.

SK 125: Technical Features

POS. CODE DESCRIPTION BLISTER QTY.
1 422675 Torch body 1
2 433608 O-ring 20
3 482135 Swirl ring 45-85 A 2
4 482136 Swirl ring 100-125 A 2
5 425023 Electrode 5
6 408613 Nozzle 45 A Clean-Cut 10
7 408615 Nozzle 65 A 10
8 408616 Nozzle 85 A 10
9 408612 Nozzle 105 A 10
10 408617 Nozzle 125 A 10
11 486028 External nozzle 45-85 A 1
12 486029 External nozzle 100-125 A 1
13 487632 Shield cap 45-85 A (manual cut) 2
14 487631 Shield cap 100-125 A (manual cut) 2
15 487640 Shield cap (gouging) 3
