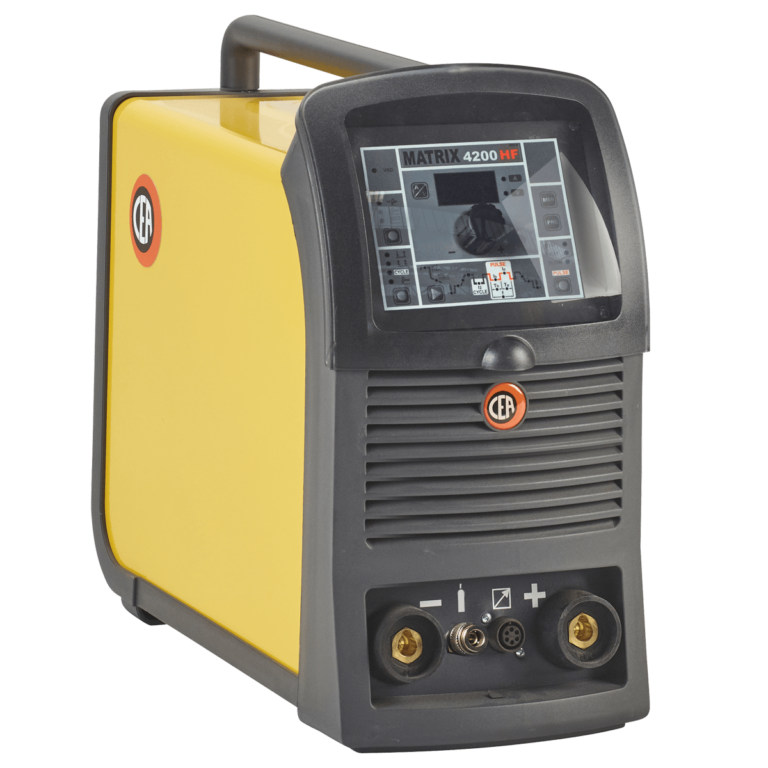

MATRIX HF

Arc Welding

MATRIX HF

THE PERFECT SOLUTION FOR DC TIG
TIG INVERTER WELDING EQUIPMENT
MATRIX HF are highly technologically advanced TIG power sources with a complete and user friendly interface for the total control of all welding parameters. MATRIX HF grant excellent TIG welding performances with mild and stainless steel, copper and its alloys and are suitable for the toughest industrial applications and maintenance.
Contact Us
TIG DC | TIG PULSE | TIG LIFT | MMA
Excellent performance
MATRIX HF offer excellent performances in MMA welding with the most difficult basic and cellulosic electrodes.

Other Characteristics

  • TIG DC min current from 1A
  • Standard equipped with pulse mode with EASY PULSE feature
  • Excellent TIG welding characteristics
  • HF IGNITION – Intelligent HF ignition grants a more accurate arc striking in all conditions
  • Energy Saving function
  • Use of special TIG torches for remote control of welding parameters
  • Control panel protected against accidental impact
  • Reduced weight and size
  • Possibility of memorizing welding parameters 99 JOBS
  • LIFT ARC CURRENT with possibility to set the value of the starting current in LIFT

MATRIX HF: Technical Features

TECHNICAL DATA MATRIX 2200 HF MATRIX 2600 HF MATRIX 3000/3001 HF MATRIX 4200 HF
Single phase input 50/60 Hz V +20% -20% 230 – – –
Three phase input 50/60 Hz V +20% -20% – 400 400 400
Input power @ I2 max kVA 5,2/6,0 6,7/9,6 8,5/8,5 16,8/19,2
Delayed Fuse A 16 10 10 16
Current range TIG A 1-220 1-260 1-300 3-420
Current range MMA A 10-180 10-250 10-270 10-400
Duty cycle (40°C) A 100% 160 200 210 270
A 60% 190 230 250 340
Standards EN 60974-1 • EN 60974-3 • EN 60974-10
Protection Class IP 23S
Dimensions (LxWxH) mm 465x185x390 495x185x390 495x185x390 560x220x425
Weight kg 14 17,5 17,5 25
