SHARK 155

Plasma Welding

SHARK 155

PLASMA CUTTING 150 A

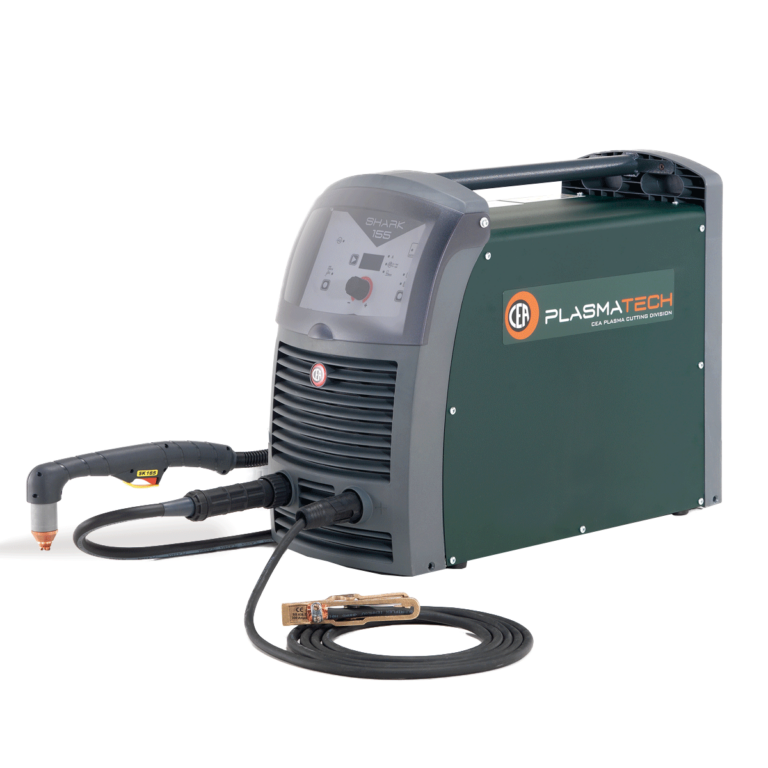

SHARK 155 is the most powerful machine in the range, it ensures extremely high quality cutting results
With its stunning cutting force, SHARK 155 is the most powerful machine in the range. Robust and precise, it ensures extremely high quality cutting results also on very large thickness. It grants the highest cutting quality at high speed by means of SK165 HPC High-Performance-Cutting technology torch.
Contact Us
Plasma Cutting

Other Characteristics

  • SK165 torch with HPC High Performance Cutting technology and coaxial cable
  • Digital display for the digital control of all parameters
  • Very high cutting power
  • More productivity thanks to high quality and cutting speed
  • Reduced operating costs granted by longer life of the consumable parts
  • Electronic control for an excellent cutting quality
  • Professional high flow air circulation
  • Pilot arc torch
  • Contact cutting possibility
  • Ability to gouging jobs
  • Cutting parameter stability within ±20% mains voltage fluctuations
  • Electric protection on the torch for the maximum safety of the operator

SHARK 155: Technical Features

TECHNICAL DATA SHARK 155
Input Voltage 50/60 Hz V 400-3ph
Input Power @ I2 max kVA 27,5
Delayed Fuse A 32
Current range A 25÷150
Duty Cycle (40°C) 100% A 100
60% A 120
30% A 150
Cutting Capacity Recommended mm 45
Maximum mm 50
Severance mm 60
Piercing mm 25
Gas supply Air/N2
Gas Pressure bar 5,0-6,0
Gas Flow l/min 360÷410
Protection Class IP 23S
Dimensions (LxWxH) mm 515x290x730
Weight kg 48
