N22

Resistance Welding

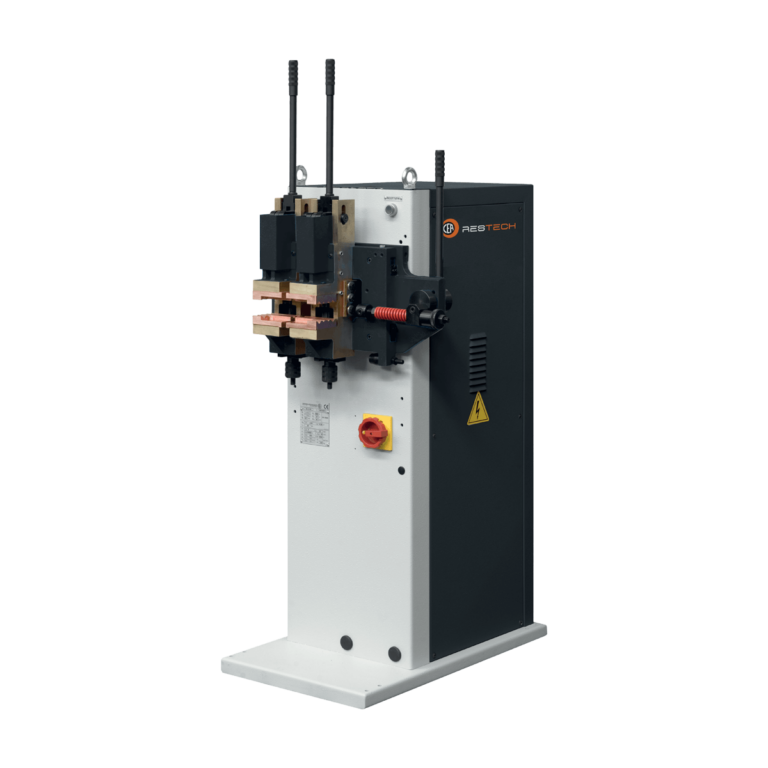

N22

BUTT WELDERS
DESIGNED FOR WIRE DRAWING MILLS
Resistance butt welder N22 is designed for wire drawing mills. Featuring powerful upsetting force and electronic control for welding parameter adjustment as optional.
Contact Us
Resistance Butt Welding
Special options
Upon request N22 series can be supplied with a burr-removing grinding wheel.

Other Characteristics

  • Manually operated
  • Welding upset adjustment
  • Welding power adjustment
  • Movable jaw by bearing guides
  • Electronic control for welding parameter adjustment (optional)

N22: Technical Features

TECHNICAL DATA N 22
Single phase input 50/60 Hz V 400
Rated power at 50% kVA 20
Max. welding power kVA 93
Installed power kVA 15
Fuse (delayed action) A 40
Secondary voltage V 4,2
Secondary short circuit current kA 28
Clamping force daN 1000
Upsetting force daN 300
Dimensions (LxWxH) mm 800x600x1550
Weight kg 280
