N3

Resistance Welding

N3

BUTT WELDERS
DESIGNED FOR WIRE DRAWING MILLS

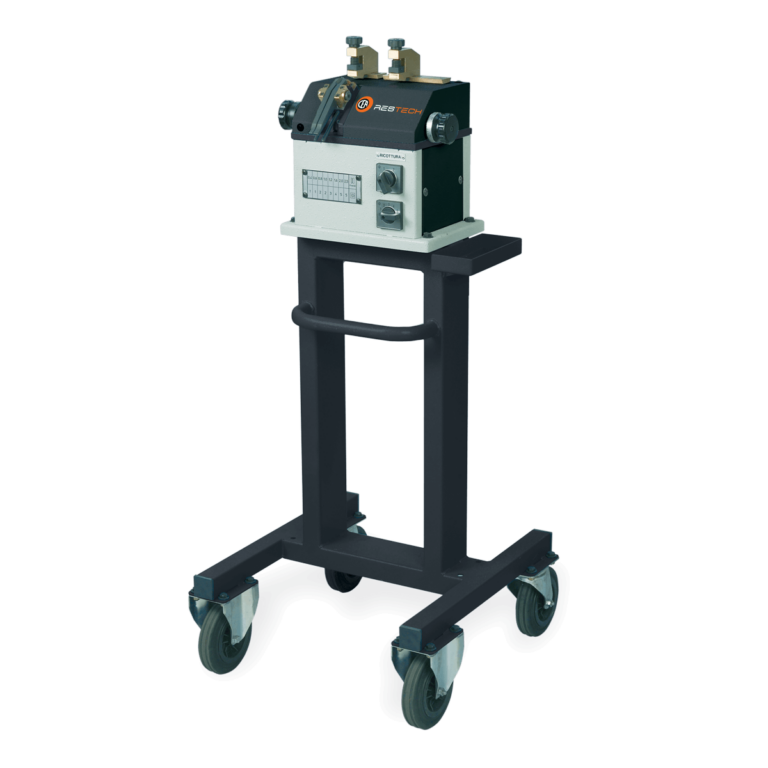

Resistance butt welder N3 is especially designed for wire drawing mills for joining steel, brass, aluminium and copper rods and recommended for non heavy duty applications. N3 is standard supplied with the annealing function and four wheel trolley. Jaws opening and closing is operated by manual levers.
Contact Us
Resistance Butt Welding
Special options
Upon request N3 series can be supplied with a burr-removing grinding wheel. Lighted magnifying glass is additionally available for N3 only.

Other Characteristics

  • Lighted magnifying glass additionally available for N3 only
  • Manually operated
  • Welding upset adjustment
  • Welding power adjustment
  • Movable jaw by bearing guides
  • Graduated scale to easily adjust jaws opening

N3: Technical Features

TECHNICAL DATA N 3
Single phase input 50/60 Hz V 400
Rated power at 50% kVA 0,8
Max. welding power kVA 2
Installed power kVA 1
Fuse (delayed action) A 10
Secondary voltage V 2
Secondary short circuit current kA 1,2
Clamping force daN 10
Upsetting force daN 1,3
Dimensions (LxWxH) mm 518x515x1145
Weight kg 52
