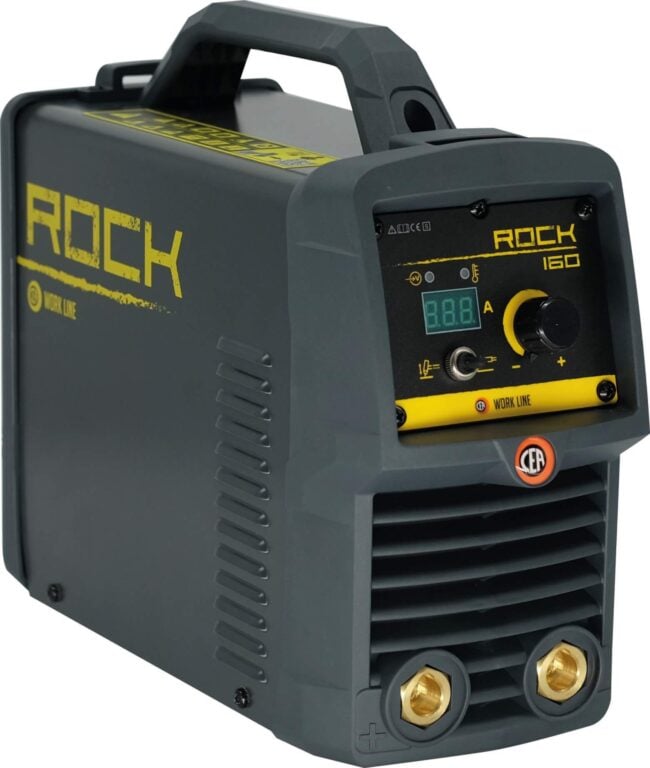

ROCK

Arc Welding

ROCK

PORTABLE EVERYWHERE
INVERTER POWER SOURCE FOR ELECTRODE WELDING
ROCK 160, 200 and 210 PRO are the latest generation of inverter power sources, built in a strong and robust chassis. They are perfect for any professional use with any type of basic and rutile electrodes for maintenance and light fabrication works.
Contact Us
MMA | TIG LIFT
MMA and TIG Lift welding
The high welding characteristics in MMA and TIG welding with Lift mode arc striking, coupled with IP 23 protection class, enable their use in any work environment.
Strong and robust construction
ROCK are equipped with ergonomic handle, carrying belt for easy transportation and standard supplied with electrode-holder and ground clamp cables.

Other Characteristics

  • Possibility to work with adequate size power generator sets
  • ROCK 210 PRO: CELL and VRD
  • Shock-proof fiber compound main structure
  • Easy-to-carry thanks to reduced weight and dimension
  • Input Voltage fluctuation compensation
  • Automatic Hot Start
  • Built-in Arc Force
  • Electrode Anti-sticking function

ROCK: Technical Features

TECHNICAL DATA ROCK 160 ROCK 200 ROCK 210 PRO
Single phase 50/60 Hz V +10% -10% 230 230 230
Input Power @ I2 Max kVA 8,2 10,4 10,6
Delayed Fuse A 16 20 25
Current range A 10-160 10-200 10-200
Duty cycle (40°C) A 100% 95 105 110
A 60% 105 110 145
Standards EN 60974-1 • EN 60974-10
Protection Class IP 23S
Dimensions (LxWxH) mm 315x135x260 315x135x260 355x135x260
Weight kg 4,3 4,6 6,1
