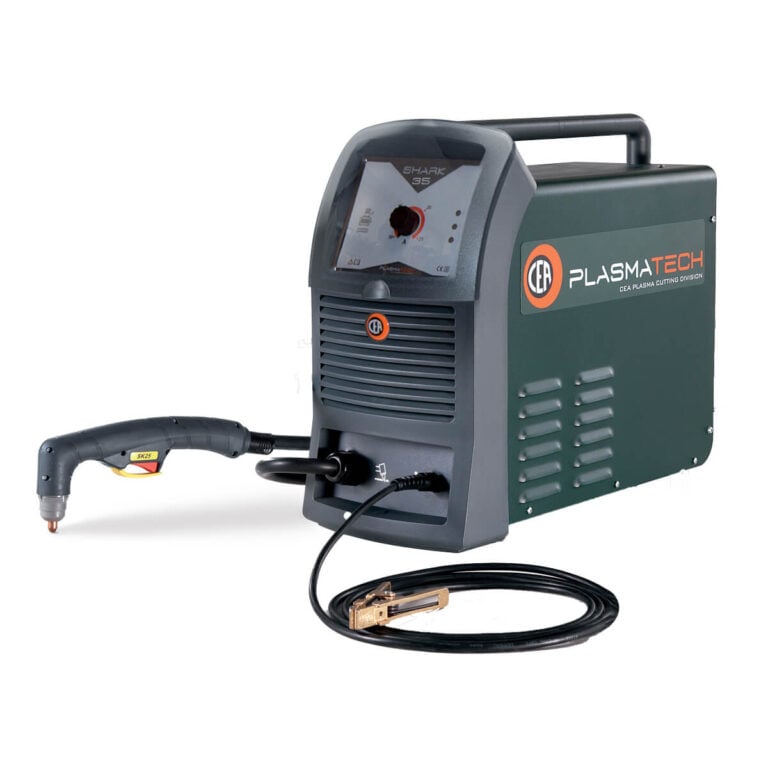

SHARK 35 COMPRESSOR

Plasma Welding

SHARK 35 COMPRESSOR

PLASMA CUTTING COMPRESSOR 30 A
SHARK 35 is the best solution for everyone who needs the maximum portability and power possible
SHARK 35 is the best cutting solution for everyone who needs the maximum portability and power possible. SHARK 35 Compressor is the best choice also for light fabrication work, agriculture and car body repairs.
Contact Us
Plasma Cutting
Plasma cutting compressor 30 A
SHARK 35 is a new compressor plasma solution by CEA that evolves the lightweight and handy characteristics of SHARK 25 chassis with a more powerful inverter and compressor.

Other Characteristics

  • 30A @ 40% for SHARK 35
  • SK25 Back Striking technology torch with coaxial cable
  • Built-in compressor
  • Portability and flexibility in the use
  • Electronic control for an excellent cutting
  • Possibility of cutting grids and perforated lamination sheets
  • Contact cutting possibility
  • Torch with pilot arc
  • Cutting parameter stability within ±15% mains voltage fluctuations
  • Air filter incorporated into the compressor
  • Metallic main structure with shockproof fibre compound front frame
  • Electric protection on the torch for the maximum safety of the operator

SHARK 35 COMPRESSOR: Technical Features

TECHNICAL DATA SHARK 35
Input Voltage 50/60 Hz V 230-1ph
Input Power @ I2 Max kVA 6,05
Delayed Fuse A 16
Current range A 10÷30
Duty Cycle (40°C) 60% A 25
40% A 30
Cutting Capacity Recommended mm 8
Maximum mm 10
Severance mm 15
Gas supply Air
Gas Pressure bar 3,5-4,0
Gas Flow l/min 70÷80
Protection Class IP 23S
Dimensions (LxWxH) mm 425x220x540
Weight kg 20,5
