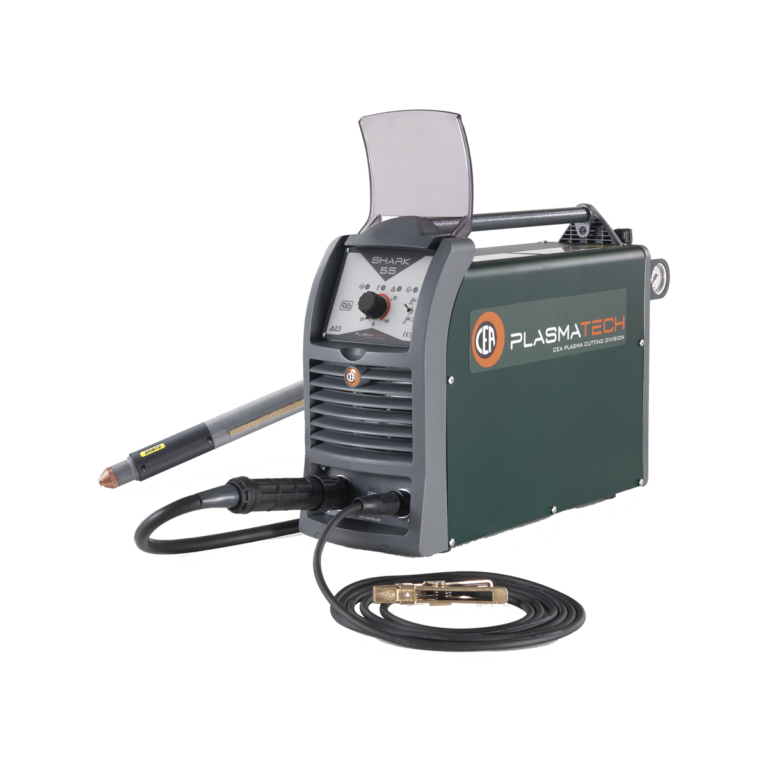

SHARK 55-M

Plasma Welding

SHARK 55-M

PLASMA CUTTING 55 A
SHARK 55 M is the most efficient solution to fully meet the cutting needs of medium and light fabrication work
Powerful and compact, SHARK 55-M is the most efficient solution to fully meet the cutting needs of medium and light fabrication work. Top quality cutting is achieved at high speed thanks to SKM75 HPC High-Performance-Cutting technology torch.
Contact Us
Plasma Cutting (Automated)

Other Characteristics

  • SKM75 torch with HPC High Performance Cutting technology and coaxial cable
  • Powerful, compact and light, only 15 Kg
  • More productivity thanks to high quality and cutting speed
  • Reduced operating costs granted by longer life of the consumable parts
  • Electronic control for an excellent cutting quality
  • Professional high flow air circulation
  • Pilot arc torch
  • Possibility of cutting grids and perforated lamination sheets
  • Contact cutting possibility
  • Energy Saving function
  • Cutting parameter stability within ±15% mains voltage fluctuations
  • Electric protection on the torch for the maximum safety of the operator

SHARK 55-M: Technical Features

TECHNICAL DATA SHARK 55-M
Input Voltage 50/60 Hz V 400-3ph
Input Power @ I2 max kVA 10,5
Delayed Fuse A 10
Current range A 20÷55
Duty Cycle (40°C) 100% A 35
60% A 45
40% A 55
Cutting Capacity Quality mm 12
Production mm 15
Maximum mm 20
Piercing mm 12
Gas supply Air/N2
Gas Pressure bar 5,0-5,5
Gas Flow l/min 170÷190
Protection Class IP 23S
Dimensions (LxWxH) mm 390x185x595
Weight kg 15
