SHARK 125

Plasma Welding

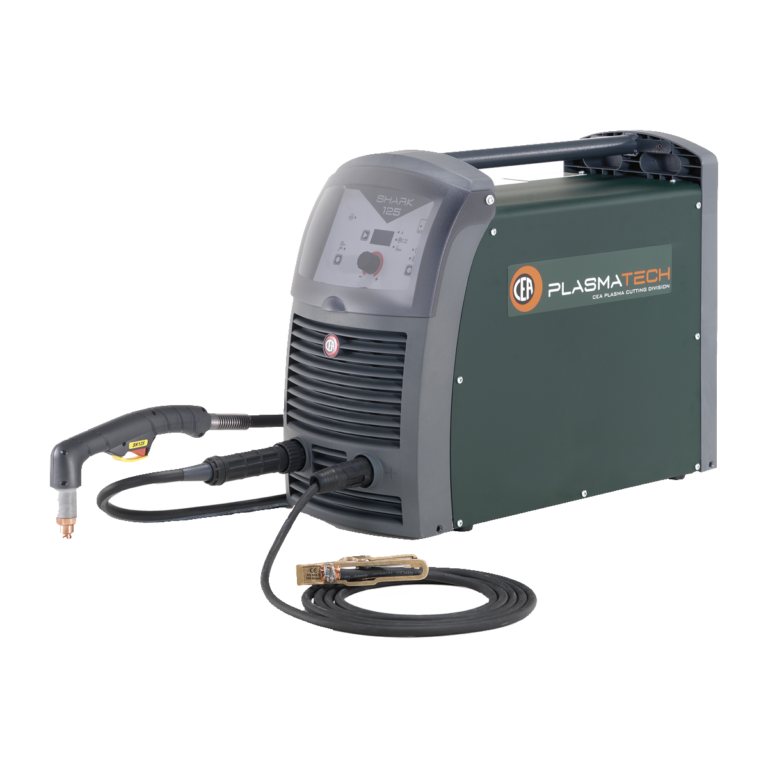

SHARK 125

PLASMA CUTTING 120 A
SHARK 125, in combination with the technology HPC of the torch SK125, it grants a cutting beam very concentrated
SHARK 125 is equipped with display for managing all the digital control. In combination with the technology HPC High-Performance-Cutting of the torch SK125, it grants to every user a cutting beam very concentrated and hot. Shark 125 also has Smart Start Transfer and Smart End Cutting for a better management of the cut.
Contact Us
Plasma Cutting

Other Characteristics

  • SK125 torch with HPC High Performance Cutting technology and coaxial cable
  • Digital display for the digital control of all parameters
  • High duty cycle: 120A @ 60%
  • More productivity thanks to high quality and cutting speed
  • Reduced operating costs granted by longer life of the consumable parts
  • Electronic control for an excellent cutting quality
  • Professional high flow air circulation
  • Pilot arc torch
  • Contact cutting possibility
  • Ability to gouging jobs
  • Cutting parameter stability within ±20% mains voltage fluctuations
  • Electric protection on the torch for the maximum safety of the operator

SHARK 125: Technical Features

TECHNICAL DATA SHARK 125
Input Voltage 50/60 Hz V 400-3ph
Input Power @ I2 max kVA 21
Delayed Fuse A 32
Current range A 25÷120
Duty Cycle (40°C) 100% A 100
60% A 120
Cutting Capacity Recommended mm 40
Maximum mm 45
Severance mm 50
Piercing mm 25
Gas supply Air/N2
Gas Pressure bar 5,0-6,0
Gas Flow l/min 280÷330
Protection Class IP 23S
Dimensions (LxWxH) mm 515x290x730
Weight kg 48
