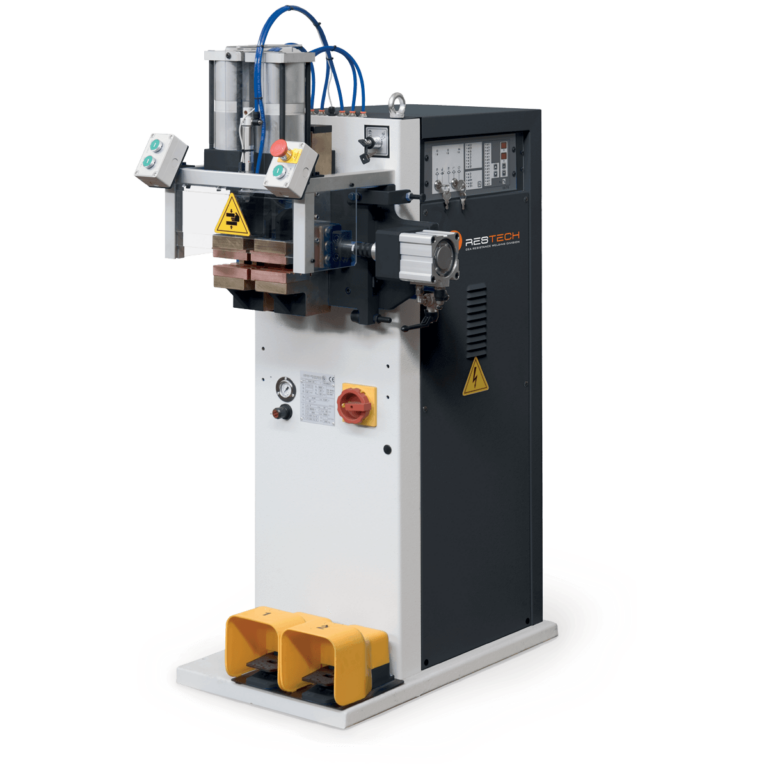

SQ/A

Resistance Welding

SQ/A

BUTT WELDERS
FOR MASS PRODUCTION
SQ/A butt welders, air operated with completely automatic cycle, allow high productivity and are suitable for welding wire manufactured goods. Upon request, SQ/A can be supplied with the pulse facility control to obtain reduced burr, good looking and slightly expanded joints.
Contact Us
Resistance Butt Welding

Other Characteristics

  • Air operated
  • Electronic control for adjusting the welding parameters
  • Movable jaw by bearing guides

SQ/A: Technical Features

TECHNICAL DATA SQ/A 121 SQ/A 62 SQ/A 100
Single phase input 50/60 Hz V 400 400 400
Rated power at 50% kVA 25 60 100
Max. welding power kVA 122 168 350
Installed power kVA 15 80 120
Fuse (delayed action) A 40 200 300
Secondary short circuit current kA 30 35 40
Clamping force daN 900 3000 5150
Upsetting force daN 350 1800 2400
Max. capacity on mild steel mm2 200 450 620
Wire Diameter min-max 3-16 6-24 6-28 mm
Dimensions (LxWxH) mm 830x640x1460 850x1750x1900 850x1750x2100
Weight kg 280 1200 1300
