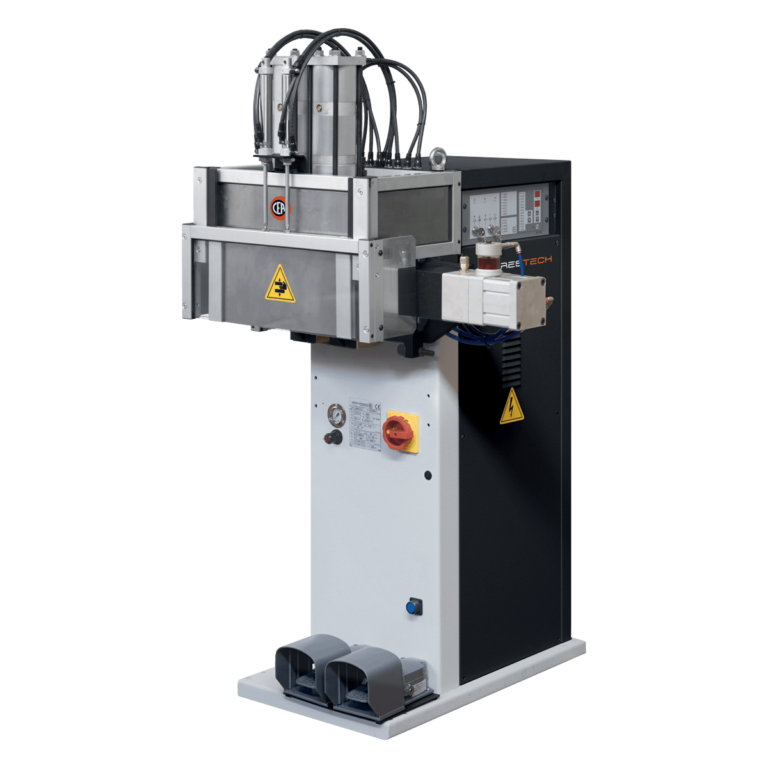

SQ/AS

Resistance Welding

SQ/AS

FLASH BUTT WELDERS
FOR MASS PRODUCTION
SQ/AS models are suitable for flash butt welding solid material, pipes, profiles and hollow sections, obtaining high quality joints. They are particularly suitable for mass production with fully automatic controls aiding speed and efficiency.
Contact Us
Resistance Flash Butt Welding

Other Characteristics

  • Air operated
  • Electronic control for adjusting the welding parameters
  • Movable jaw by bearing guides

SQ/AS: Technical Features

TECHNICAL DATA SQ/AS 121 SQ/AS 62 SQ/AS 100
Single phase input 50/60 Hz V 400 400 400
Rated power at 50% kVA 25 60 100
Max. welding power kVA 122 168 350
Fuse (delayed action) A 40 160 250
Secondary short circuit current kA 30 35 40
Clamping force daN 1350 2100 5150
Upsetting force daN 450 1200 2400
Max. capacity on mild steel mm2 250 350 550
Wire diameter min-max 5-16 8-20 8-26 mm
Dimensions (LxWxH) mm 830x920x1600 850x1750x1900 850x1750x2100
Weight kg 300 1200 1300
