TREO / TREOSTAR PULSE

Arc Welding

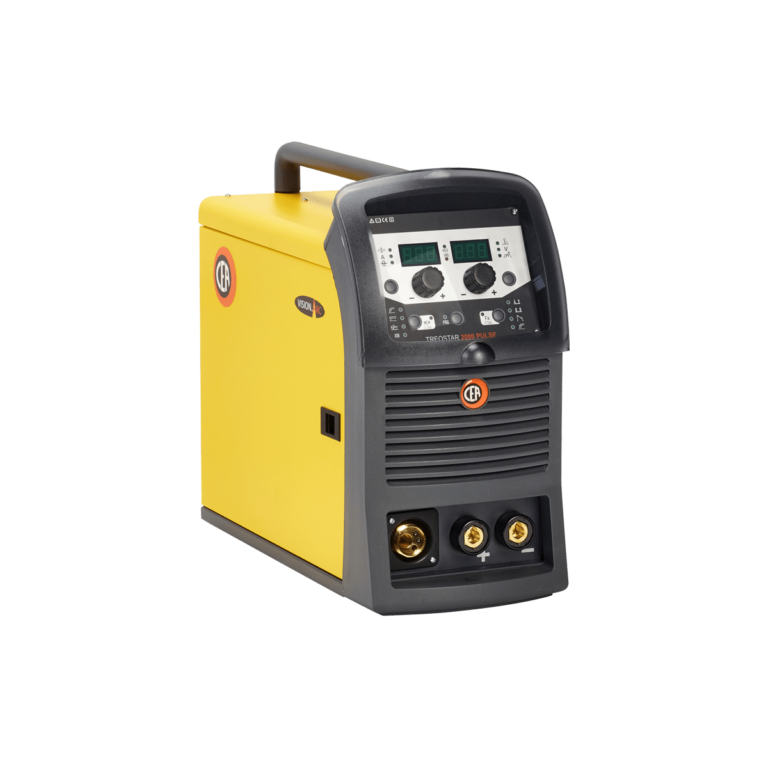

TREO / TREOSTAR PULSE

COMPACT AND POWERFUL
MIG-MAG INVERTER PORTABLE EQUIPMENT
TREO are high performance multiprocess (MIG/MAG, MMA and TIG Lift) single phase synergic inverter equipment. TREOSTAR PULSE additionally enables to weld also with PULSE and DUAL PULSE.
Contact Us
MIG/MAG | PULSED MIG | DUAL PULSED | MMA | TIG LIFT
High welding performance
TREO, with a simpler interface offer high quality welding characteristics on all materials and mostly on stainless steel, aluminium and zinc coated steel, by really minimizing any reworking job caused by spatters.
Great flexibility in use and portability
Versatile, light, easy-to-carry and user friendly, TREO and TREOSTAR PULSE power sources, because of their high technological conception, are unique in any external and internal maintenance application, car body repair, agriculture and light fabrication work.

Other Characteristics

  • Digital control of the welding parameters with synergic curves preset
  • User friendly and easy-to-use selection and recalling of the parameters and programs
  • Built-in polarity changeover facility
  • Smart PROGRAM key for quickly selecting any program
  • Professional wire feeding mechanism with Ø 37 mm large rolls
  • Double groove rolls replaceable without any tool
  • Energy saving function to operate the power source cooling fan only when necessary
  • Kit for Ø 300 mm coils (optional)

TREO / TREOSTAR PULSE: Technical Features

TECHNICAL DATA TREO 181 TREOSTAR 2000 PULSE
MIG/MAG TIG MMA MIG/MAG TIG MMA
Single phase 50/60 Hz V +10% -10% 230 230
Input Power @ I2 Max kVA 8,2 6,4 7,4 10 6,3 7,8
Delayed Fuse (l eff) A 16 16
Power Factor / cos φ 0.67/0,99 0,64/0,99
Efficiency Degree 0,82 0,80
Open circuit voltage V 80 60
Current range A 15-180 10-180 10-160 10-200 5-175 10-175
Duty cycle at (40°C) A 100% 75 75 75 100 100 90
A 60% 100 100 100 115 115 110
Wires Ø mm 0,6-1,2 — — 0,6-1,2 — —
Standards EN 60974-1 • EN 60974-5 • EN 60974-10
Protection Class IP 23S 23S
Dimensions (LxWxH) mm 500 x 220 x 425 500 x 220 x 425
Weight kg 14,5 16
