ARCTRONIC

Arc Welding

ARCTRONIC

THE PIPE-WELD QUEEN
DC THREE-PHASE ELECTRODE WELDING EQUIPMENT WITH ELECTRONIC CURRENT ADJUSTMENT
ARCTRONIC are sturdy, reliable, with excellent arc characteristics and recommended for highest standard applications with any electrode. Suitable for use in shipyards, steel construction and pipe welding.
Contact Us
MMA | TIG LIFT

Other Characteristics

  • Adjustable Hot Start and Arc Force
  • Electrode Anti-sticking Function
  • Lift arc mode TIG welding striking
  • Gouging facility with carbon electrodes (special version)
  • Stand by function
  • PCB in isolated rack for protection against dust and dirt

ARCTRONIC: Technical Features

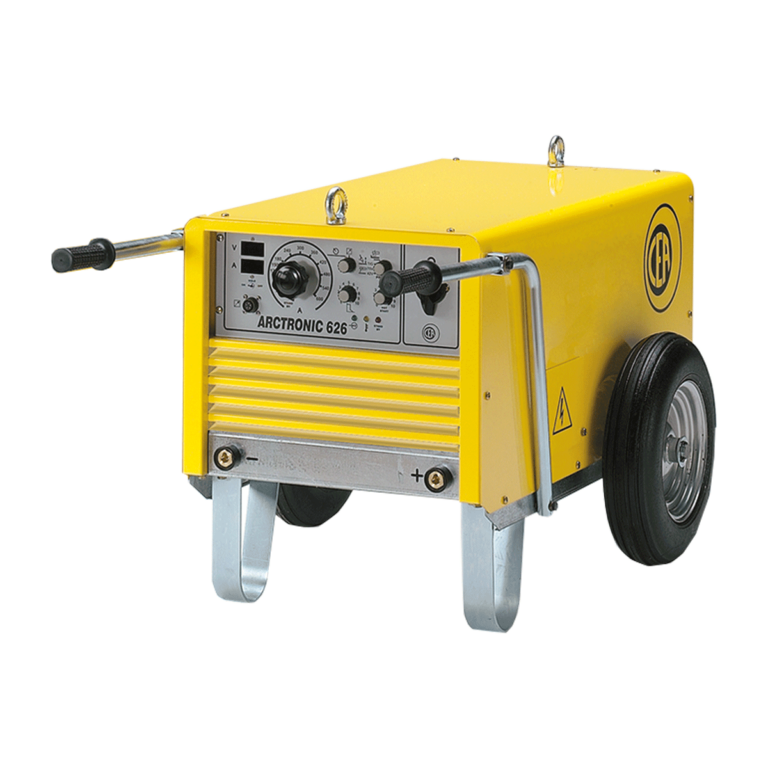

TECHNICAL DATA ARCTRONIC 626
Three phase 50/60 Hz V +10% -10% 230/400
Installed Power @ I2 Max kVA 47,4
Delayed Fuse A 80/45
Current range A 5-600
Duty cycle (40°C) A 100% 330
A 60% 430
A 35% 600
Electrodes Ø mm 1,6-8
Standards EN 60974-1 • EN 60974-10
Protection Class IP 23S
Dimensions (LxWxH) mm 1260 x 730 x 615
Weight kg 196
