SHARK 105

Plasma Welding

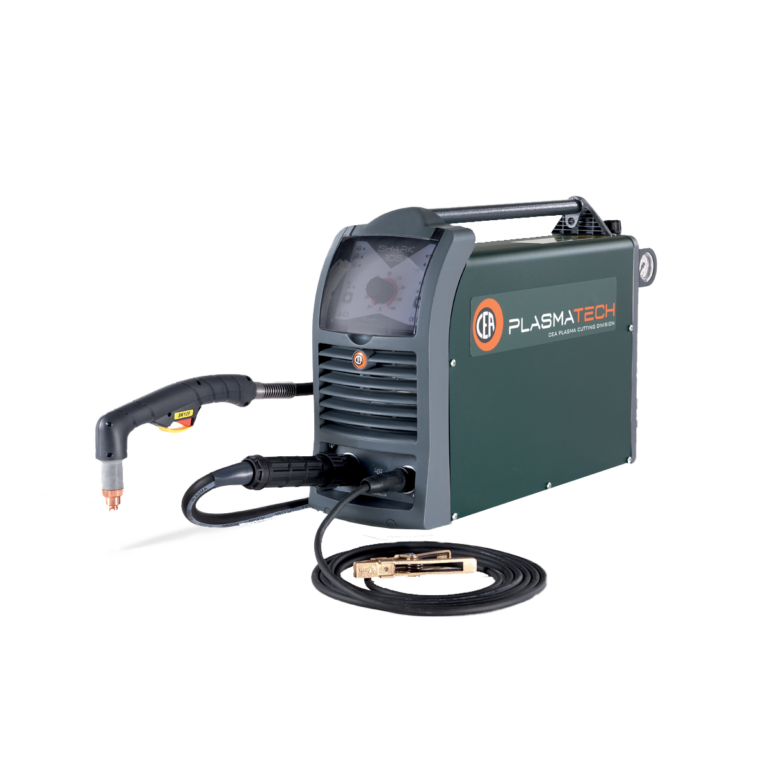

SHARK 105

PLASMA CUTTING 100 A
SHARK 105 absolutely grants high productivity in the toughest cutting operations without any compromise
Powerful, robust and compact, SHARK 105 absolutely grants high productivity in the toughest cutting operations without any compromise: cuts are always precise and ensure the highest cutting results in all applications.
Contact Us
Plasma Cutting

Other Characteristics

  • SK125 torch with HPC High Performance Cutting technology and coaxial cable
  • Powerful, compact and light, only 24 Kg
  • More productivity thanks to high quality and cutting speed
  • Reduced operating costs granted by longer life of the consumable parts
  • Electronic control for an excellent cutting quality
  • Professional high flow air circulation
  • Pilot arc torch
  • Possibility of cutting grids and perforated lamination sheets
  • Contact cutting possibility
  • Ability to gouging jobs
  • Energy Saving function
  • Cutting parameter stability within ±20% mains voltage fluctuations
  • Electric protection on the torch for the maximum safety of the operator

SHARK 105: Technical Features

TECHNICAL DATA SHARK 105
Input Voltage 50/60 Hz V 400-3ph
Input Power @ I2 max kVA 15
Delayed Fuse A 16
Current range A 20÷100
Duty Cycle (40°C) 100% A 70
60% A 90
40% A 100
Cutting Capacity Recommended mm 30
Maximum mm 35
Severance mm 40
Piercing mm 20
Gas supply Air/N2
Gas Pressure bar 5,0-6,0
Gas Flow l/min 280÷330
Protection Class IP 23S
Dimensions (LxWxH) mm 390x185x595
Weight kg 24
