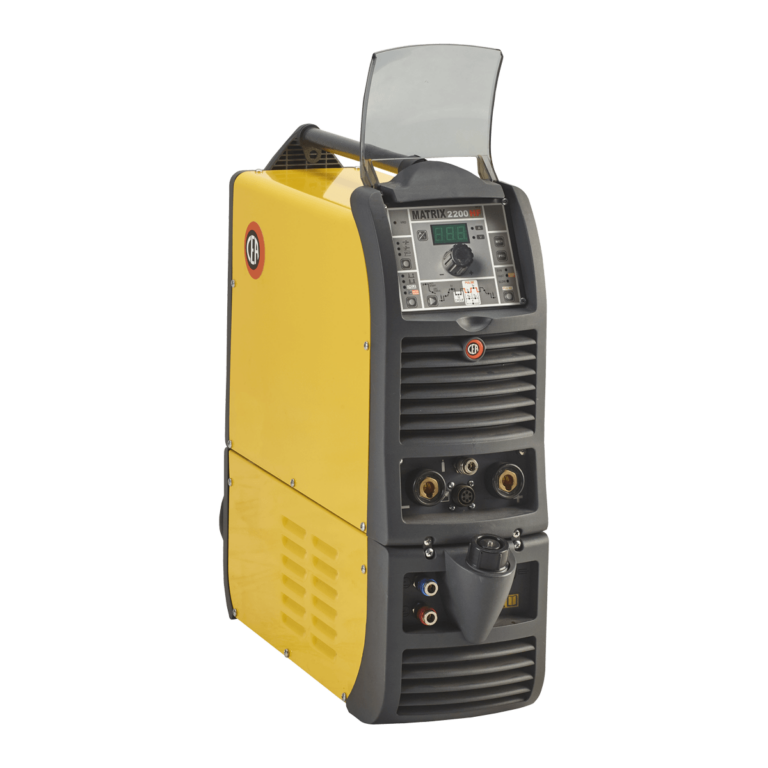

MATRIX HF-R

Arc Welding

MATRIX HF-R

THE PERFECT ROBOTIC SOLUTION FOR DC TIG
TIG INVERTER WELDING EQUIPMENT FOR ROBOTIC APPLICATION
MATRIX series three-phase power sources, in the special R version, can be easily integrated in TIG welding automated equipment by means of ROBOMAT 1 interface which handles both all the start/stop signals of the process and main welding parameter adjustments.
Contact Us
TIG DC | TIG PULSE | MMA
Robomat 01
ROBOMAT01 represents a flexible and efficient interface system that fully meets all Analogic/Digital connections.

Other Characteristics

  • TIG DC min current from 1A
  • Pulse mode with EASY PULSE feature
  • Excellent TIG welding characteristics
  • HF IGNITION for accurate arc striking
  • Energy Saving function

MATRIX HF-R: Technical Features

TECHNICAL DATA MATRIX 3000 HF-R MATRIX 4200 HF-R
Three phase 50/60 Hz V +20% -20% 400 400
Current range TIG A 1-300 3-420
Current range MMA A 10-270 5-400
Duty cycle (40°C) A 100% 210 270
A 60% 250 340
Standards EN 60974-1 • EN 60974-3 • EN 60974-10
Protection Class IP 23S
Dimensions (LxWxH) mm 495x185x390 560x220x425
Weight kg 17,5 25
