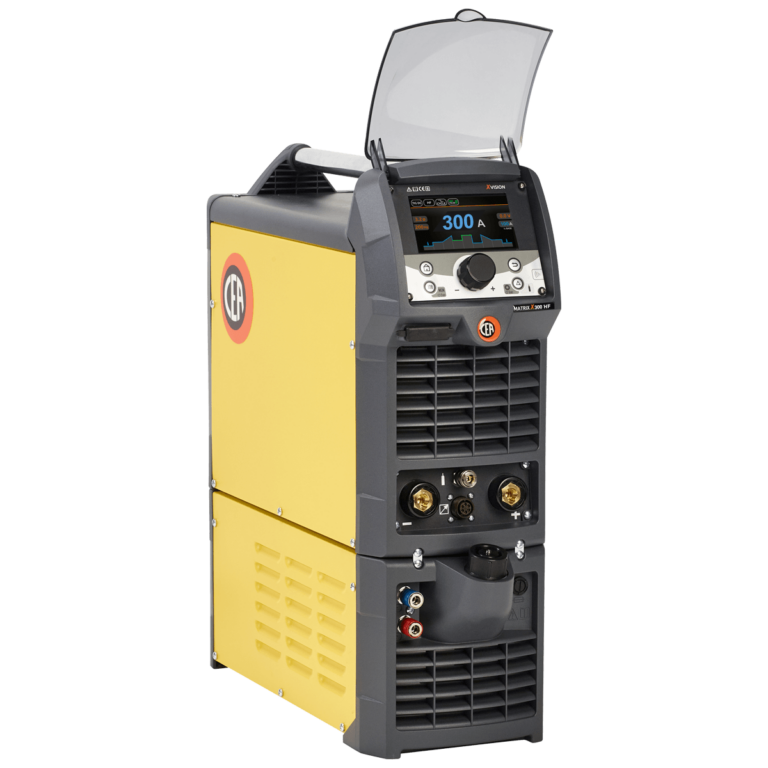

MATRIX X HF

Arc Welding

MATRIX X HF

THE ULTIMATE SOLUTION FOR DC TIG
TIG INVERTER WELDING EQUIPMENT
MATRIX X HF are high efficiency TIG HF inverter power sources, studied to satisfy the most advanced and sophisticated requests in the TIG welding market. They enable TIG welding of mild and stainless steel, copper and its alloys and also offer excellent performance in MMA welding with the most difficult basic and cellulosic electrodes.
Contact Us
TIG DC | TIG PULSE | TIG LIFT | MMA
X Vision interface
MATRIX X HF are standard equipped with the new X VISION interface, simple and complete, for the total control and monitoring of all the welding parameters. Their excellent characteristics, coupled with the high technology of the digital control, allow a perfect stability of the welding arc, granting high performance TIG welding in the more sophisticated industrial applications and maintenance.
Single phase with PFC available
Thanks to PFC the single phase MATRIX X 220 HF optimizes the amount of energy consumption by allowing the use of this powerful power source with 16 A fuse mains and power generator sets.

Other Characteristics

  • TIG DC minimum current from 1A
  • Excellent welding characteristics in TIG with all materials and MMA with any type of electrodes
  • Smart HF IGNITION for accurate arc striking
  • Use of Up/Down TIG torches for remote control
  • Reduced weight and size
  • Compact water cooling integrable (optional)
  • Simple automation: TSA1 TIG KIT (Optional)

MATRIX X HF: Technical Features

TECHNICAL DATA MATRIX X 220 HF MATRIX X 300 HF MATRIX X 400 HF
Single phase 50/60 Hz V +20% -20% 230 – –
Three phase 50/60 Hz V +20% -20% – 400 400
Current range TIG A 1-220 1-300 1-400
Current range MMA A 10-180 10-270 10-400
Duty cycle (40°C) A 100% 160 210 290
A 60% 190 250 340
Standards EN 60974-1 • EN 60974-3 • EN 60974-10
Protection Class IP 23S
Dimensions (LxWxH) mm 530x215x410 530x215x410 530x215x410
Weight kg 18 20 22
