MAXI I SYNERGIC

Arc Welding

MAXI I SYNERGIC

SIMPLE, STRONG, MULTIPROCESS AND SYNERGIC
MIG-MAG INVERTER SYNERGIC EQUIPMENT WITH SEPARATE WIRE FEEDER

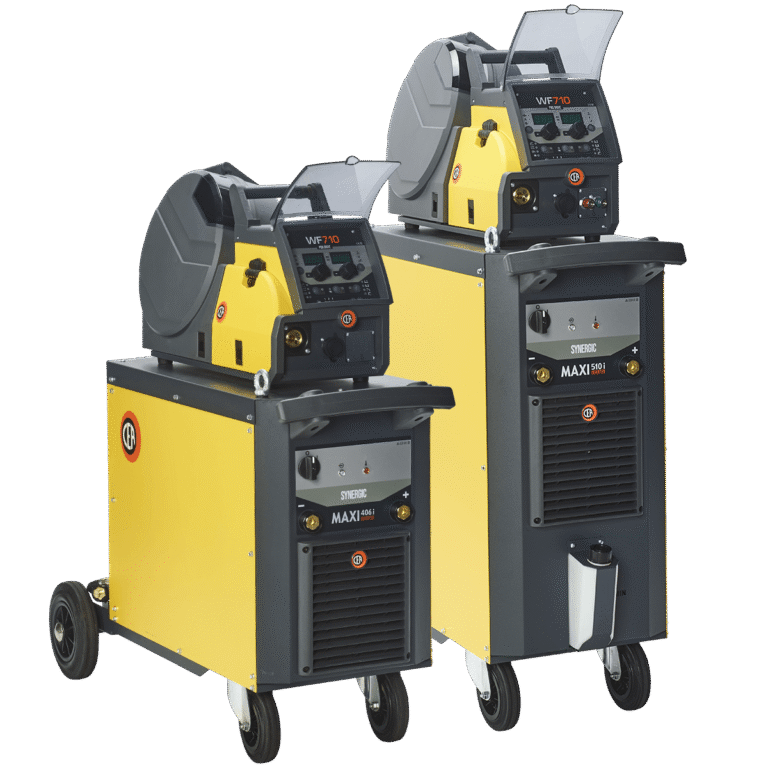

MAXI i SYNERGIC are multi-process equipment characterized by a synergic digital control and inverter technology, integrated into a sturdy and functional metallic structure, with a separate wire feeder. Technologically advanced, robust and easy-to-use, they allow high quality welding in MIG-MAG, MMA, TIG with Lift mode.
Contact Us
MIG/MAG | MMA | TIG LIFT
Full synergic control
The user-friendly interface makes MAXI i SYNERGIC easy to operate without any advanced training. Once the wished program has been selected, the welding control automatically sets the best parameters based on the material type, wire diameter and gas being used.
Simple, strong and reliable
MAXI i SYNERGIC are the best choice in all industrial fields for all qualified applications requiring high precision and repeatability of the welding results, such as medium and large fabrication work, shipyards and steel erection.

Other Characteristics

  • Parameter control directly from the wire feeder with synergic curves (material, gas, wire)
  • Smart JOB key for quick recall of 3 favourite JOBs
  • Energy saving: fan and water cooling operate only when needed
  • Precise and efficient arc striking
  • Partial or full machine lock via password
  • Robust metal main structure
  • Initial and final crater control
  • Integrated water cooling (W) or retrofittable

MAXI I SYNERGIC: Technical Features

TECHNICAL DATA MAXI i SYNERGIC
410 410 w 510 510 w
Three phase input 50/60 Hz V +20% -20% 400 400 400 400
Input Power @ I2 Max kVA 17 17,5 23,5 24
Delayed Fuse (l eff) A 16 16 20 20
Power Factor / cos φ 0,92/0,99 0,92/0,99 0,94/0,99 0,94/0,99
Efficiency Degree 0,87 0,87 0,87 0,87
Open circuit voltage V 50 50 56 56
Current range A 20-400 20-400 20-500 20-500
Duty cycle at (40°C) A 100% 280 280 330 330
A 60% 320 320 400 400
A 35% 400 400 500 500
Wires Ø mm 0,6-1,6 0,6-1,6 0,6-1,6 0,6-1,6
Standards EN 60974-1 • EN 60974-5 • EN 60974-10
Protection Class IP 23S 23S 23S 23S
Dimensions (LxWxH) mm 1000 x 500 x 710 1000 x 500 x 930 1000 x 500 x 710 1000 x 500 x 930
Weight kg 48 61 52 65
