MF4 YARD

Arc Welding

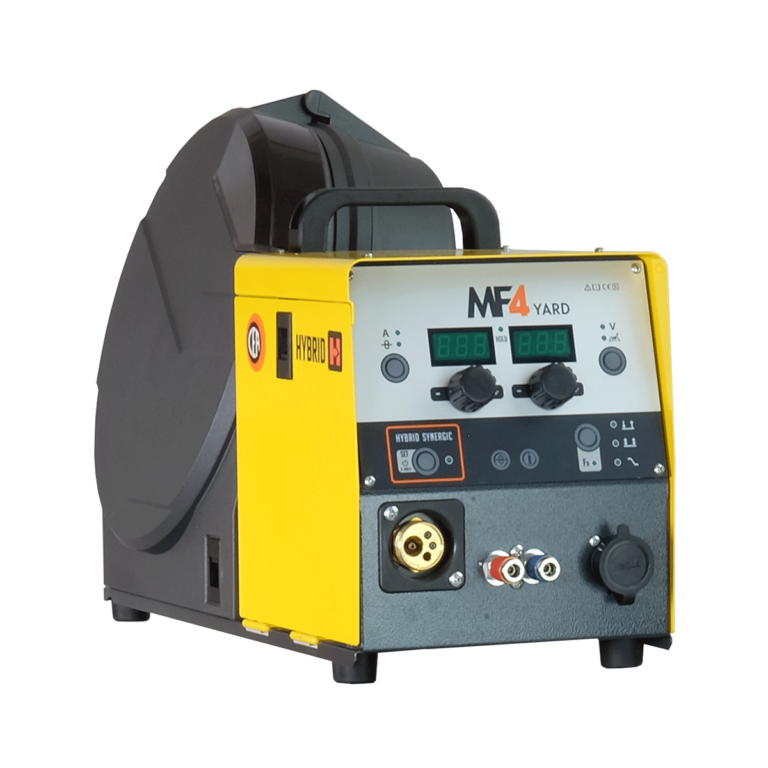

MF4 YARD

MIG WIRE FEEDER FOR YARD APPLICATION
ENGINEERED FOR HEAVY DUTY APPLICATION
MF4 YARD and MF4W YARD proposes main selection and control keys as given directly from the power source. The available 2 independent displays provide the possibility of contemporarily visualizing and monitoring 2 different parameters at the same time. This wire feeder is for use with all Q-YARD series.
Contact Us

Other Characteristics

  • HYBRID SYNERGIC
  • Digital control of all parameters protected by a cover
  • Professional wire feeding mechanism with 4 rolls of large diameter
  • Graduated knob for correct wire pressure
  • Double groove rolls replaceable without any tool
  • Lodging for wire spools up to 300 mm diameter
  • Inspection window in the spool cover
  • HK1 Hanging Kit (optional)

MF4 YARD: Technical Features

TECHNICAL DATA MF4 YARD / MF4W YARD
Single phase input 50/60 Hz V 24 DC
Motor power W 100
Rolls No. 4
Feeding speed m/min 1,5/25
Solid wire (steel) Ø mm 0,6/1,6
Spool Ø mm / Weight 300 / 20 MAX
Dimensions (LxWxH) mm 635 x 270 x 415
Weight kg 15
