Resistance Welding

N9

BUTT WELDERS
DESIGNED FOR WIRE DRAWING MILLS

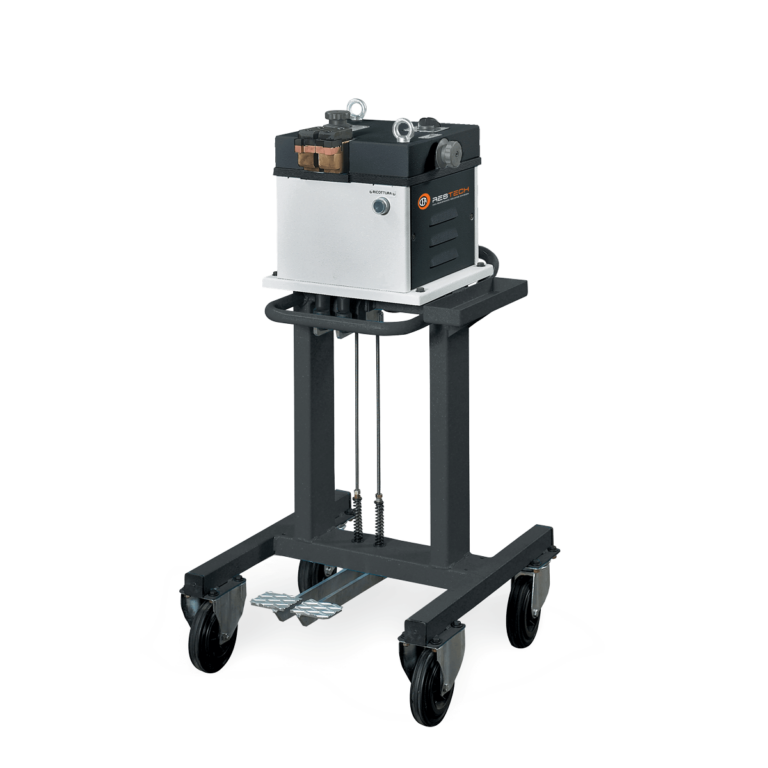

Resistance butt welder N9 is designed for wire drawing mills for joining steel, brass, aluminium and copper rods. Standard supplied with the annealing function and four wheel trolley.
Contact Us
Resistance Butt Welding
Special options
Upon request N9 series can be supplied with a burr-removing grinding wheel.

Other Characteristics

  • Manually operated
  • Welding upset adjustment
  • Welding power adjustment
  • Movable jaw by bearing guides
  • Graduated scale to easily adjust jaws opening

N9: Technical Features

TECHNICAL DATA N 9
Single phase input 50/60 Hz V 400
Rated power at 50% kVA 3
Max. welding power kVA 9,6
Installed power kVA 3
Fuse (delayed action) A 10
Secondary voltage V 2,6
Secondary short circuit current kA 4,4
Clamping force daN 80
Upsetting force daN 20
Dimensions (LxWxH) mm 565x565x1100
Weight kg 80
