SHARK 55

Plasma Welding

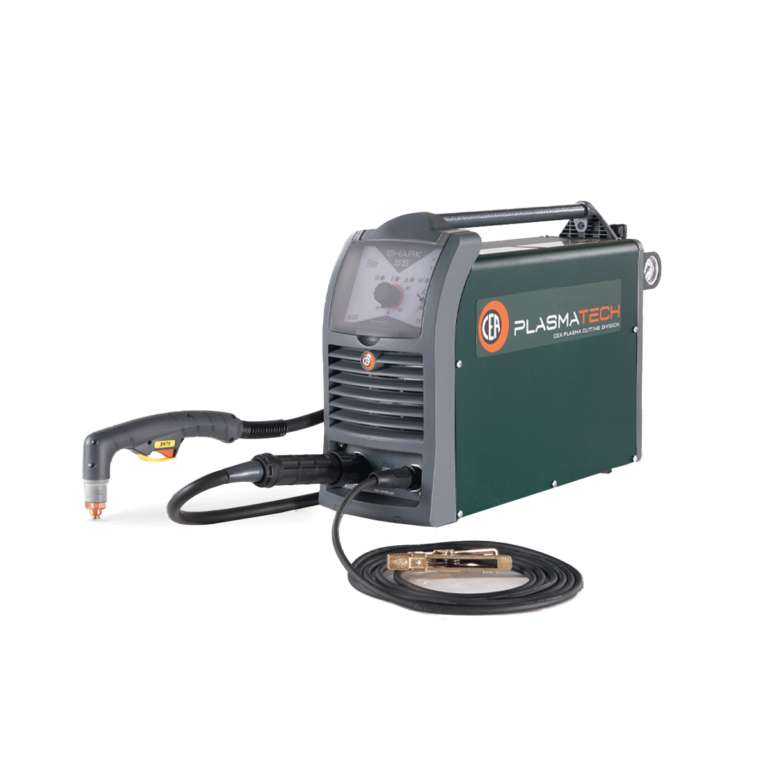

SHARK 55

PLASMA CUTTING 55 A
SHARK 55 is the most efficient solution to fully meet the cutting needs of medium and light fabrication work
Powerful and compact, SHARK 55 is the most efficient solution to fully meet the cutting needs of medium and light fabrication work. Top quality cutting is achieved at high speed thanks to SK75 HPC High-Performance-Cutting technology torch.
Contact Us
Plasma Cutting

Other Characteristics

  • SK75 torch with HPC High Performance Cutting technology and coaxial cable
  • Powerful, compact and light, only 15 Kg
  • More productivity thanks to high quality and cutting speed
  • Reduced operating costs granted by longer life of the consumable parts
  • Electronic control for an excellent cutting quality
  • Professional high flow air circulation
  • Pilot arc torch
  • Possibility of cutting grids and perforated lamination sheets
  • Contact cutting possibility
  • Energy Saving function
  • Cutting parameter stability within ±15% mains voltage fluctuations
  • Electric protection on the torch for the maximum safety of the operator

SHARK 55: Technical Features

TECHNICAL DATA SHARK 55
Input Voltage 50/60 Hz V 400-3ph
Input Power @ I2 max kVA 10,5
Delayed Fuse A 10
Current range A 20÷55
Duty Cycle (40°C) 100% A 35
60% A 45
40% A 55
Cutting Capacity Recommended mm 15
Maximum mm 20
Severance mm 25
Piercing mm 12
Gas supply Air/N2
Gas Pressure bar 5,0-5,5
Gas Flow l/min 170÷190
Protection Class IP 23S
Dimensions (LxWxH) mm 390x185x595
Weight kg 15
