PPN

Resistance Welding

PPN

SPOT AND PROJECTION WELDERS
VERTICAL STROKE
Being suitable for both spot and projection welding jobs, PPN models fully satisfy an extremely large variety of the heaviest mass production industrial applications.
Contact Us
Resistance Spot Welding | Resistance Projection Welding

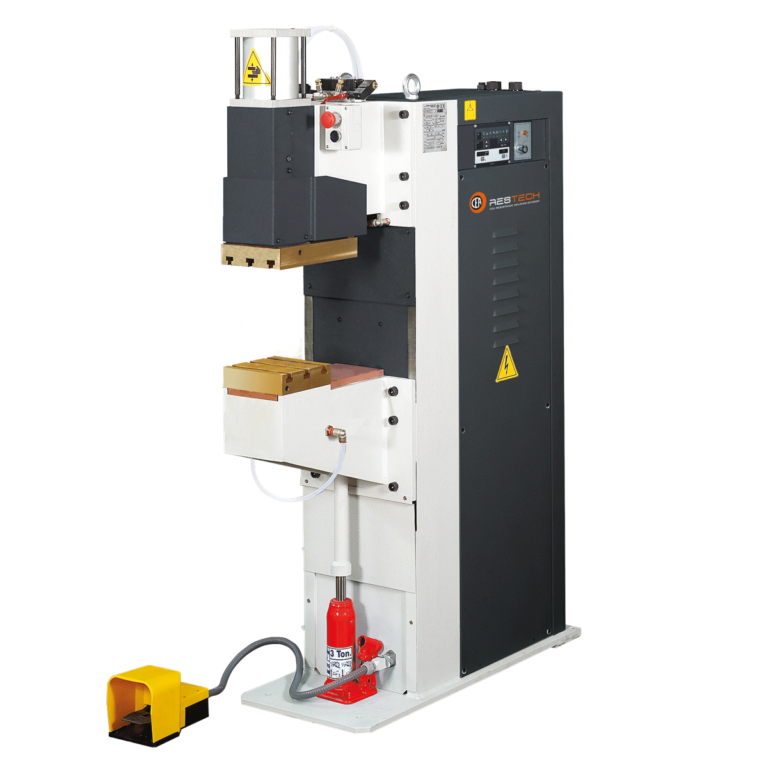

PPN 63
PPN 63 is equipped with features for spot and projection welding in the heaviest mass production industrial applications.
PPN 83, 103, 153 and 253
All supplied with lower platen adjustable in height and fitted with T-slots, enable the quick assembly of barholders, electrodeholders or any dedicated tooling for a specific application. Platens gap is easily and quickly adjustable without any intervention on the secondary circuit.

Other Characteristics

  • Lower round arm with adjustable height and lateral adjustment
  • Electrodeholders with electrodes for spot welding and ability to fit barholders for projection welding
  • Upper head linear bearing driving system for precision welding
  • Excellent welding on all weldable metals
  • Synchronous ignition SCR group
  • Thermostatic protection on the SCR group
  • High welding currents with low consumption
  • Set up time reduction thanks to quick and easy modification of electrodeholders platens
  • Self-lubricated pneumatic components
  • Water cooled secondary circuit

PPN: Technical Features

TECHNICAL DATA PPN 63 PPN 83 PPN 103 PPN 153 PPN 253
Single phase input 50/60 Hz V 400 400 400 400 400
Rated power at 50% kVA 50 80 100 150 250
Max. welding power kVA 113 210 293 460 610
Installed power kVA 38 65 78 120 195
Fuse (delayed action) A 100 150 200 300 500
Secondary short circuit current kA 24 32 39 50 61
Max welding current kA 19 25 31,2 40 49
Work stroke mm 65 100 100 100 100
Electrode force at 600kPa daN 470 736 900 1200 1884
Water consumption at 300kPa l/min 7 8 8 8 8
Dimensions (LxWxH) mm 1070x430x1520 1115x400x1650 1115x400x1650 1170x400x1800 1210x460x1800
Weight kg 335 560 580 610 900
