Q-YARD

Arc Welding

Q-YARD

THE MULTIPROCESS YARD MASTER
HYBRID SYNERGICR MIG-MAG INVERTER EQUIPMENT WITH SEPARATE WIRE FEEDER
Q-YARD represents the ideal welding equipment for the needs of yard industry. This power source has been developed and produced with the highest quality and reliability criteria to allow the best welding performances in yard application.
Contact Us
MIG/MAG | MMA | TIG LIFT | HYBRID SYNERGIC
Dedicated yard feeder

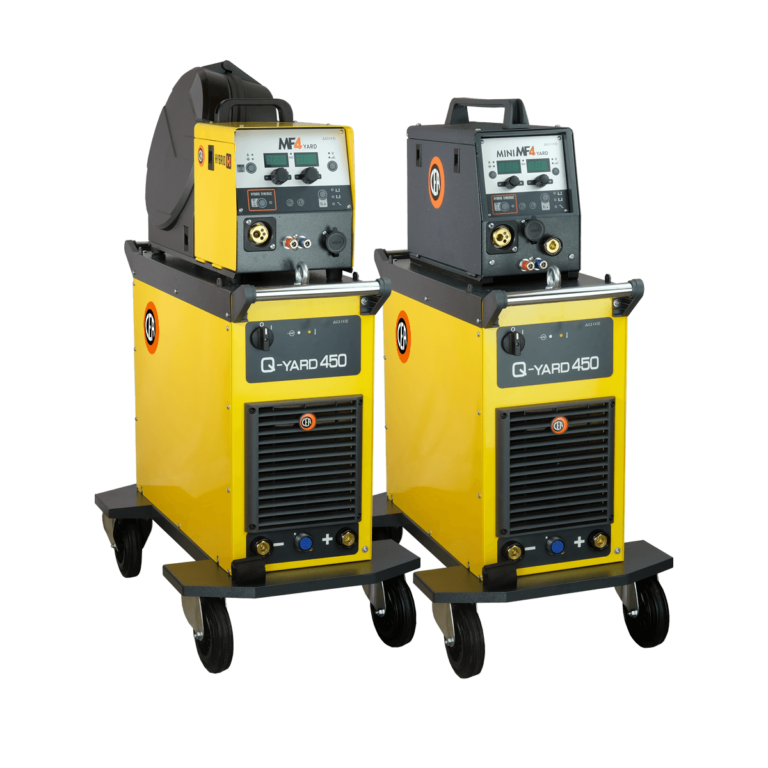

The new wire feeders MF4 YARD and MINI MF4 YARD allow to keep the adjustment simplicity of the conventional MIG equipment with two knobs to set Voltage and Wire Speed.
Multi-process, for yard welding application
Q-YARD can work with air-cooling interconnecting cable up to 80m and up to 40m with water-cooled ones. Q-YARD allows to weld with the HYBRID SYNERGIC mode granting the same welding performances as the most modern equipment also in manual MIG mode.

Other Characteristics

  • MIG, MMA, TIG Lift
  • Special design optimized for yard industry: easy to stack on top of each other
  • MIG/MAG: MANUAL and HYBRID SYNERGICR
  • Great robustness due to solid metallic main structure
  • Excellent arc striking
  • Energy saving to operate the power source cooling fan and torch water cooling only when necessary
  • Final crater control
  • Burn-Back control

Q-YARD: Technical Features

TECHNICAL DATA QYARD 450
Three phase input 50/60 Hz V +20% -20% 400
Input Power @ I2 Max kVA 22
Delayed Fuse (l eff) A 32
Power Factor / cos φ 0,84/0,99
Efficiency Degree 0,86
Open circuit voltage V 62
Current range A 10-450
Duty cycle at (40°C) A 100% 390
A 50% 450
Wires Ø mm 0,6-1,6
Standards EN 60974-1 • EN 60974-5 • EN 60974-10
Protection Class IP 23S
Dimensions (LxWxH) mm 631 x 273 x 512
Weight kg 56
