COMPACT

Arc Welding

COMPACT

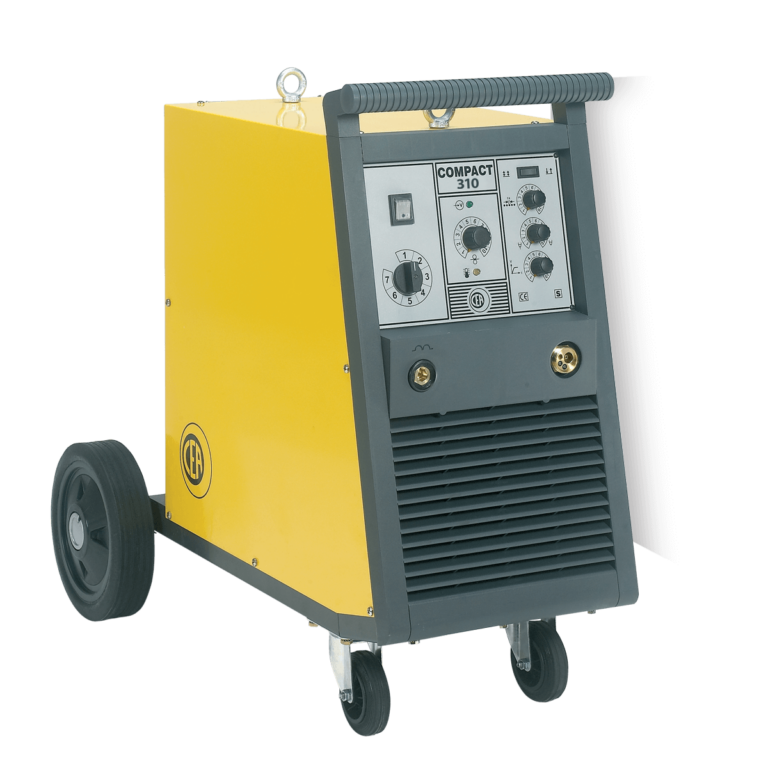

STEP ADJUSTMENT MIG COMPACT EQUIPMENT
COMPACT SEMIAUTOMATIC WELDING EQUIPMENT WITH STEP ADJUSTMENT
A series of industrial semiautomatic welding equipment with built-in wire feeder, suitable for professional and industrial applications. COMPACT power sources ensure excellent welding characteristics on any material, aluminium and stainless steel included, by granting a very stable arc in any welding position.
Contact Us
MIG/MAG

Other Characteristics

  • Excellent MIG-MAG welding characteristics on any material and with any gas
  • Arc striking always precise
  • Burn-Back and motor ramp externally adjustable
  • Spot timer on all models
  • 2-4 stroke mode selector switch
  • Professional feeding system
  • Large inner lodging to accommodate metallic coils (300 mm Ø max.)
  • Double inductance connection
  • Standard supplied with cylinder carriage and robust wheels

COMPACT: Technical Features

TECHNICAL DATA COMPACT 310 COMPACT 410
Three phase input 50/60 Hz V 230/400 230/400
Input Power @ I2 Max kVA 13,3 18,5
Delayed Fuse A 25/16 35/20
Power Factor / cos φ 0,96 0,96
Efficiency Degree 0,70 0,77
Open circuit voltage V 18-43,5 20-44
Adjustment positions No. 10 20
Current range A 30-300 60-400
Duty cycle (40°C) 100% 170 240
60% 225 300
35% 300 400
Wires Ø mm 0,6-1,2 0,6-1,6
Standards EN 60974-1 • EN 60974-5 • EN 60974-10
Protection Class IP 23S 23S
Dimensions (LxWxH) mm 860 x 540 x 790 1060 x 600 x 780
Weight kg 70 109
