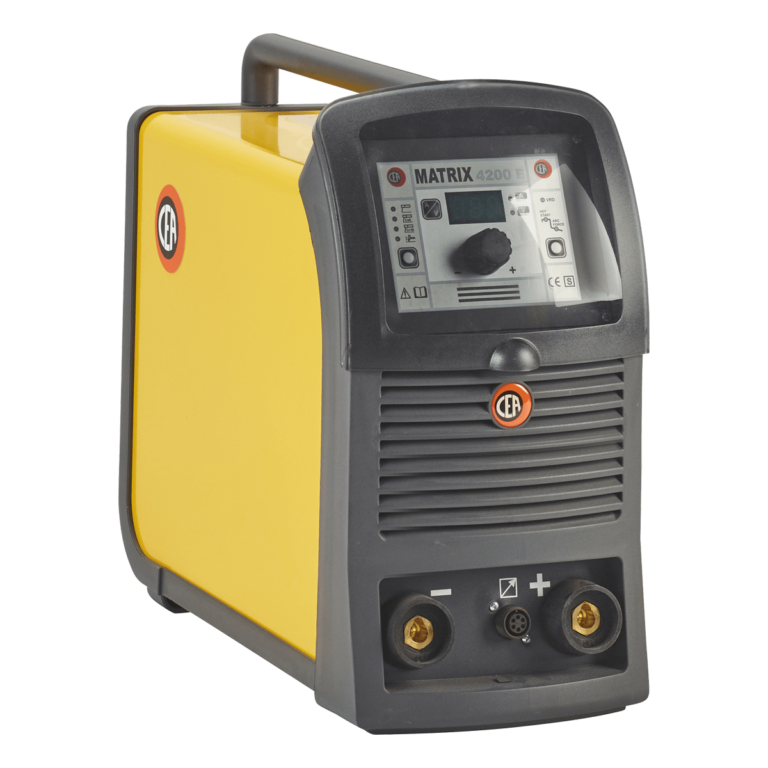

MATRIX E

Arc Welding

MATRIX E

PROFESSIONAL ALLROUNDER FOR MMA WELDING
THREE PHASE INVERTER POWER SOURCES FOR ELECTRODE WELDING
Powerful, compact and light MATRIX E are high performing and technologically advanced MMA power sources, recommended for highest standard applications with any electrode.
Contact Us
MMA | TIG LIFT
Portable, strong and powerful
Thanks to PFC the single phase MATRIX 2200 E optimizes the amount of energy consumption by allowing the use of this powerful power source with 16 A fuse mains and power generator sets.
Main features
Excellent welding characteristics in MMA with any kind of electrodes, including cellulosic, and in TIG with Lift mode || High reliability when used with generator sets || Suitable to be used with mains cable lengths over 100m || ENERGY SAVING function || Possibility of activating the VRD function || STAND BY function on the remote control || Auto-diagnostic feature for trouble shooting || Control rack protection cover || IP 23 protection class || Electrode Anti-sticking function

Other Characteristics

  • Excellent welding in MMA with any electrodes including cellulosic, and TIG with Lift mode
  • High reliability with generator sets
  • Suitable for mains cable lengths over 100m
  • ENERGY SAVING function
  • VRD function activatable
  • STAND BY function on remote control
  • Auto-diagnostic feature
  • IP 23 protection class
  • Electrode Anti-sticking function

MATRIX E: Technical Features

TECHNICAL DATA MATRIX 2200E MATRIX 2700E SV MATRIX 3000E MATRIX 4200E
Single phase 50/60 Hz V +15% -15% 230 – – –
Three phase 50/60 Hz V +15% -15% – 230/400 400 400
Input Power @ I2 Max kVA 5,7 8,0 10,5 19,4
Current range A 5-180 5-220 5-300 5-420
Duty cycle (40°C) A 100% 120 150 220 270
A 60% 150 180 250 340
Standards EN 60974-1 • EN 60974-10
Protection Class IP 23S
Dimensions (LxWxH) mm 430x185x390 430x185x390 430x185x390 500x220x425
Weight kg 12 16,5 15 20
