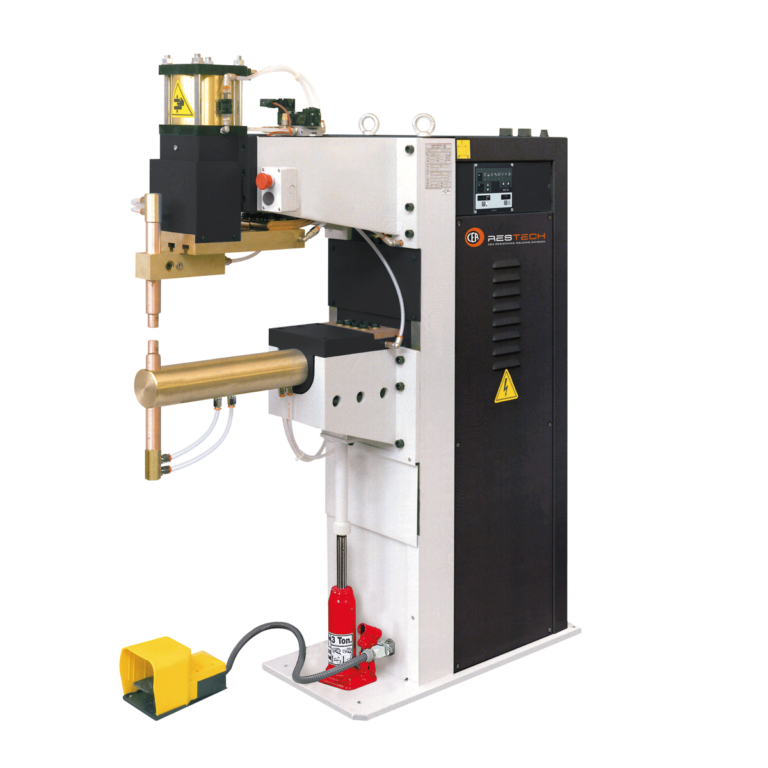

PPS

Resistance Welding

PPS

SPOT WELDERS
VERTICAL STROKE
Particularly studied for spot welding, PPS model fully satisfy a wide range of the heaviest large production industrial applications. Equipped with microprocessor control, solenoid valve, upon request they can be fitted with safety concomitant side buttons and any special configurations.
Contact Us
Resistance Spot Welding
Flexible configuration
PPS 35-60 models offer a flexible configuration suitable for a wide range of spot welding applications in heavy large production industrial settings.
Welding advantages
Excellent welding on all weldable metals || Synchronous ignition SCR group with phase shift welding current adjustment to eliminate initial transient || Thermostatic protection on the SCR group || Self-lubricated pneumatic components || Water cooled secondary circuit || Water cooled copper electrodeholders with adjustable height

Other Characteristics

  • Lower round arm with adjustable height and lateral adjustment
  • Upper head low friction driving system for precision welding
  • Excellent welding on all weldable metals
  • Synchronous ignition SCR group
  • Thermostatic protection on the SCR group
  • Self-lubricated pneumatic components
  • Water cooled secondary circuit
  • Water cooled copper electrodeholders with adjustable height
  • Electrode force adjustable by pressure reducer
  • Upper electrode movement by self-lubricated double effect pneumatic cylinder

PPS: Technical Features

TECHNICAL DATA PPS 35 PPS 60 PPS 125
Single phase input 50/60 Hz V 400 400 400
Rated power at 50% kVA 35 60 125
Max. welding power kVA 69 113 294
Installed power kVA 20 38 80
Fuse (delayed action) A 63 100 250
Secondary short circuit current kA 19 24 32
Max welding current kA 15,2 19,2 25,6
Work stroke mm 85 65 100
Electrode force at 600kPa daN 300 470 900
Water consumption at 300kPa l/min 7 7 8
Dimensions (LxWxH) mm 1005x410x1425 1070x430x1520 1370x420x1750
Weight kg 200 335 700
